Ferdi Fittings is a top manufacturer and supplier of Alloy Steel Pipe Fittings in Istanbul, Turkey. With modern facilities and a focus on quality, Ferdi Fittings makes pipe fittings that meet international standards and industry requirements. These fittings are built for strength, precision, and long-lasting use, serving demanding industries worldwide. The company conducts thorough testing to ensure reliable performance and fast delivery. By using high-quality materials and forging methods, Ferdi Fittings provides solutions that perform well in tough and high-stress conditions, meeting the needs of customers in oil and gas, power, chemicals, and processing industries.
| Specifications Standard | Astm A234/ ASME SA 234 |
|---|---|
| Alloy Steel Pipe Fittings Size Range | Welded Fittings: 1/2″ – 48″ Seamless Fittings: 1/2″ – 10″ |
| Connection | Welding |
| Type | DN15 to DN1200 |
| Radius of bending | R=3D, 1D, 8D, 10D, 5D, 2D, Custom MSS Sp-43, 6D |
| Alloy Steel Pipe Fittings Manufacturing process | Forge, Press, Cast, Push etc. |
| Thickness | SCH10, SCH40, XS, SCH30, SCH 160, SCH 80, SCH 140, SCH60, SCH20, STD , SCH 120, SCH 100, XXS |
| Pressure Ratings | 2000#, 150#, 6000#, 3000#, 9000# |
| End Connections: | socket weld and Threaded |

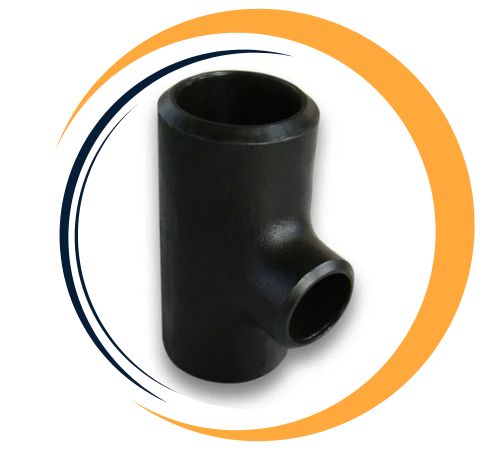

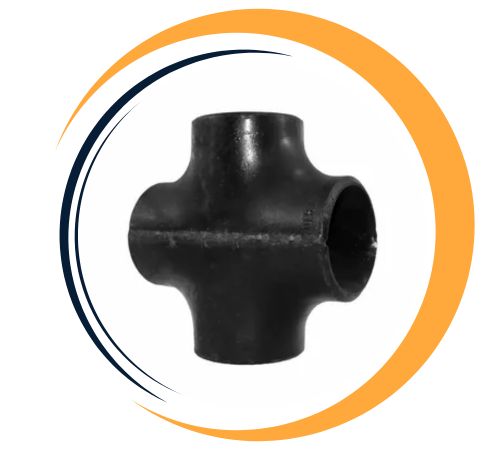

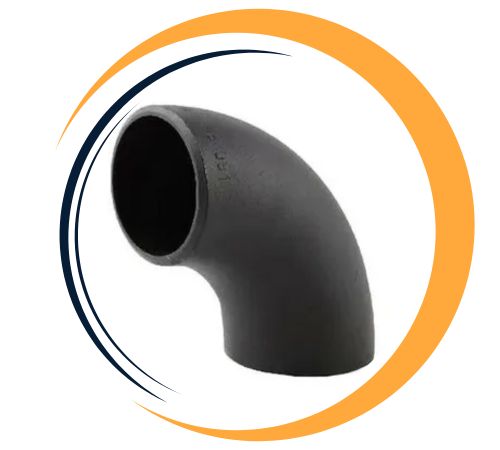

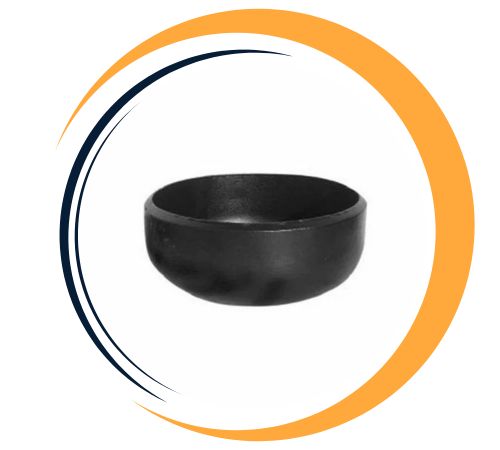

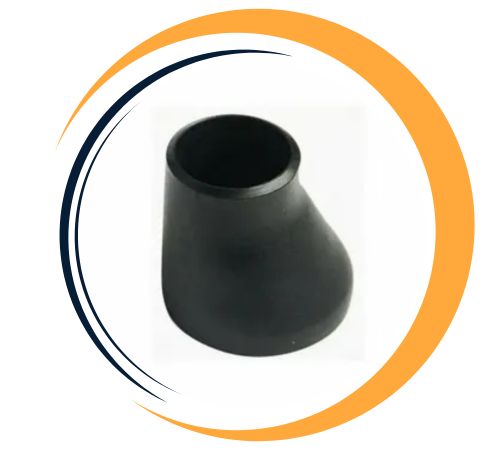

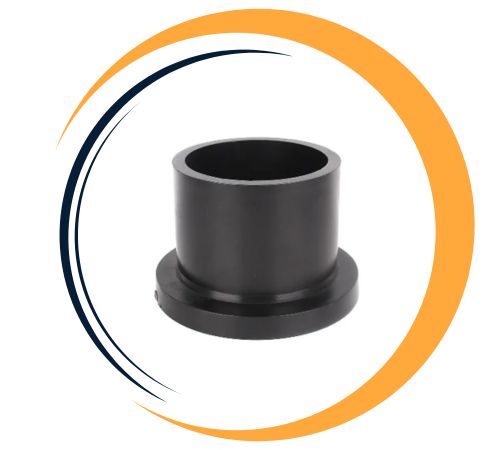

| Alloy Steel Pipe Fittings manufacturer | 90º Tee, Elbows, Pipe Cap, Stub End, 45º Elbows, Crosses, Pipe Bend, Reducers |
| Dimensions | ASME B16.28, BS4504, MSS-SP-43, ASME/ANSI B16.9, BS1560, BS4504, BS10 |
| Elbows | Angle : 2.0D, 1.5D, 5D, 3D, 1.0D, 6D, 4D, 2.5D, 7D-40D . Standard: JISB2312, MSS SP-75, 22.5 deg, JISB2313, 30deg, ASME B16.9, 180 deg, 45 deg, JISB2311 BS, DIN2605, 90 deg, GB ISO |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate Third Party Inspection Report, etc |
Alloy Steel Pipe Fittings are made from iron combined with elements like chromium, molybdenum, nickel, and sometimes vanadium or manganese to boost mechanical performance. These added elements enhance strength, toughness, corrosion resistance, and stability at high temperatures. Typical mechanical properties include high tensile and yield strength, good elongation, and impact toughness. These fittings resist creep and fatigue under high heat and pressure. Additionally, they maintain dimensional stability, resist scaling, and offer good weldability for use in various piping systems.
|
Grade |
Mn |
C |
P |
Si |
Cr |
S |
Mo |
|---|---|---|---|---|---|---|---|
|
F5 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 to 1.00 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F1 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F11 |
0.03 to 0.06 |
0.05 to 0.015 |
0.003 |
0.05 to 1.00 |
1.00 to 1.05 |
0.003 |
0.044 to 0.065 |
|
F9 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 to 1.00 |
8 to 10 |
0.003 |
0.09 to 1.01 |
|
F22 |
0.03 to 0.06 |
0.050.015 maximum |
0.003 |
0.05 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F12 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F91 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 to 1.00 |
8 to 10 |
0.003 |
0.09 to 1.01 |
|
Grade |
Yield Strength (0.2%Offset) |
Tensile Strength |
Elongation |
|---|---|---|---|
|
F5 |
485 |
275 |
20 % |
|
F1 |
485 |
275 |
20 % |
|
F11 |
415 |
205 |
20 % |
|
F9 |
585 |
380 |
20 % |
|
F22 |
415 |
205 |
20 % |
|
F12 |
485 |
275 |
20 % |
|
F91 |
585 |
380 |
20 % |
Ferdi Fittings is a leading supplier of Alloy Steel Pipe Fittings in Istanbul, Turkey. We offer an extensive range of Alloy Steel Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel Pipe Fittings from Ferdi Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Alloy Steel Pipe Fittings offer excellent strength, durability, and resistance to corrosion, making them ideal for high-stress applications. Their ability to withstand extreme temperatures and pressure enhances their reliability in oil and gas, chemical processing, and power generation industries. These fittings provide superior wear resistance, ensuring long-term performance even in abrasive environments. Additionally, alloy steel pipe fittings are highly versatile, offering good weldability and machinability, which ensures ease of installation and maintenance. Their cost-effectiveness and long-lasting nature make them a preferred choice for demanding industrial applications.
Yes, custom sizes for Alloy Steel Pipe Fittings are available at Ferdi Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@ferdifittings.com.
Alloy Steel Pipe Fittings are widely used in industries that need reliability and durability. They are vital in oil and gas pipelines, petrochemical and chemical plants, refineries, and power generation facilities. Their strength and corrosion resistance make them suitable for high-pressure steam lines, superheaters, boilers, and heat exchangers. They also work well in process lines carrying aggressive chemicals or high-temperature fluids. In infrastructure and industrial plants, these fittings connect pipes in bends, tees, reducers, and joints, ensuring leak-free operation in extreme conditions and maintaining system integrity in critical environments.
