Titanium Gr 5 Pipe Fittings are celebrated for their incredible strength, durability, and outstanding resistance to corrosion, which is why they’re among the most popular titanium alloys used in various industrial settings. These fittings are crafted from a blend of titanium, aluminum, and vanadium, striking a perfect balance between toughness and lightweight characteristics. They can handle extreme pressure and temperature, making them ideal for demanding industries. Thanks to their excellent formability and weldability, Titanium Gr 5 Pipe Fittings find applications in aerospace, marine, chemical processing, and oil & gas sectors, where reliability and longevity are essential.
Standard : ASTM B363 / ASME SB363
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/2″ to 24″ NB to 24″NB in
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Type : Seamless / Welded / Fabricated

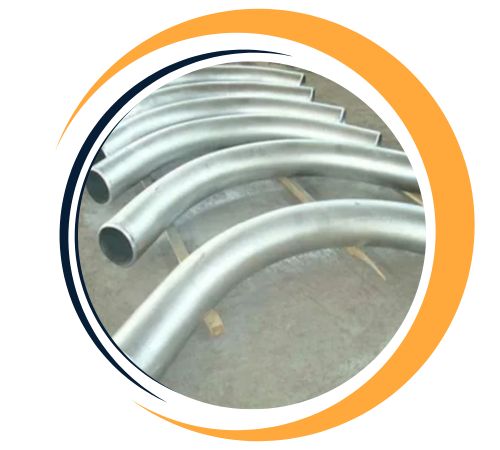

Bending Radius :R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr 5 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | N56400 |
Titanium Grade 5, also known as Ti-6Al-4V, is composed of approximately 90% titanium, 6% aluminum, and 4% vanadium. This alloy is known for its high strength-to-weight ratio and excellent corrosion resistance. It has a tensile strength of around 950 MPa, yield strength of 880 MPa, and good fatigue and creep resistance at high temperatures. The alloy maintains structural integrity up to 400°C and exhibits a hardness of about 36 HRC. These mechanical properties make Titanium Gr 5 ideal for critical applications in aerospace, marine, and industrial sectors.
These fittings consist of an alloy that’s primarily made up of 90% titanium, 6% aluminum, and 4% vanadium. This unique mix offers impressive tensile and yield strength while keeping the structure light. They show remarkable resistance to corrosion, especially in chloride-rich and oxidizing environments, and maintain their stability even at high temperatures. Titanium Grade 5 is known for its excellent fatigue strength, toughness, and thermal stability, ensuring they perform consistently under tough conditions. The outstanding mechanical properties of this alloy make these fittings incredibly versatile, perfect for critical applications that demand both durability and resistance to harsh environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Gr 5 Pipe Fittings from Ferdi Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Titanium Grade 5 (Ti-6Al-4V) pipe fittings offer numerous advantages, including exceptional strength-to-weight ratio, which makes them ideal for demanding applications where lightweight yet durable materials are required. They exhibit outstanding corrosion resistance, especially in aggressive environments such as seawater, acids, and high-temperature conditions. Titanium Grade 5 fittings also offer high fatigue strength, excellent weldability, and resistance to wear and creep. These properties make them perfect for aerospace, marine, and chemical industries. Additionally, their long lifespan and low maintenance requirements contribute to cost savings over time.

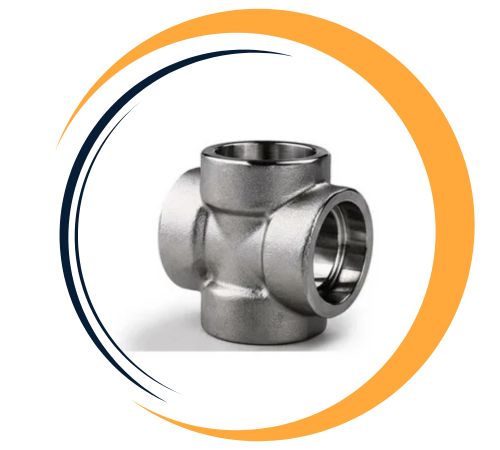

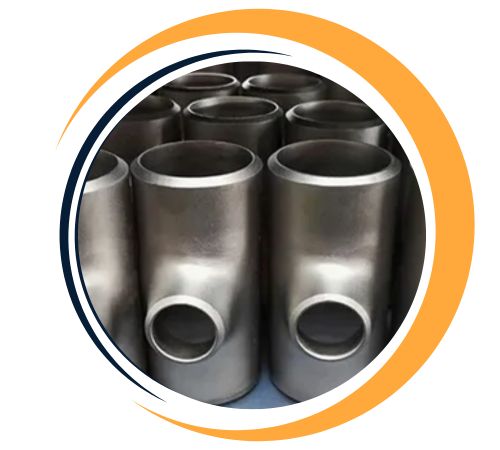

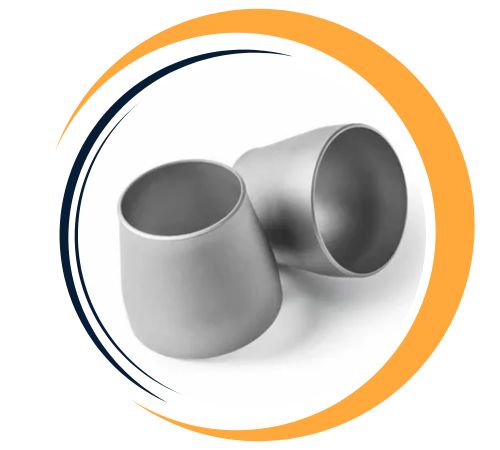

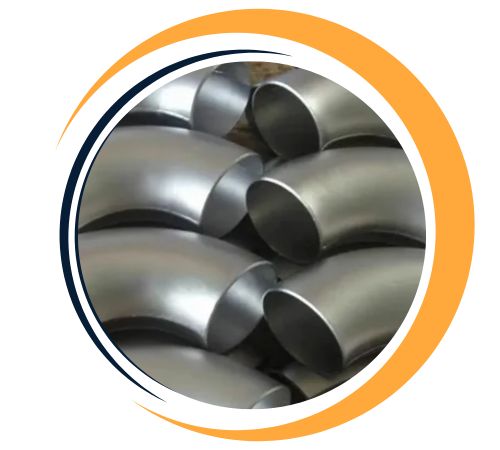

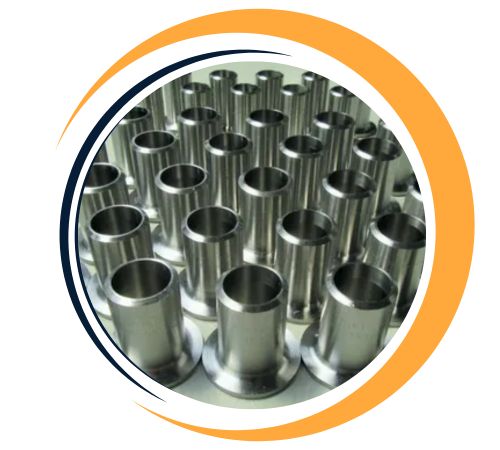

| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings | GR5 Titanium Alloy Long Radius Elbows, Long Radius Reducing Elbows, Titanium Gr5 Long Radius Returns, Titanium Alloy Gr5 Short Radius Elbows, Titanium Gr 5 Short Radius 180-deg Rerurns, Titanium Gr 5 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Titanium Gr 5 Lap Joint Stub Ends, Titanium Gr 5 Caps, Reducers |
| ASME B16.28 | Gr5 Titanium Alloy Short Radius Elbows, Titanium Gr 5 Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Titanium Gr 5 Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, Gr5 Titanium Gr 5 caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| Mss SP75 | Titanium Gr 5 Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, Gr5 Titanium Alloy reducers |
Yes, custom sizes for Titanium Gr 5 Pipe Fittings are available at Ferdi Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@ferdifittings.com.
The applications of Titanium Gr 5 Pipe Fittings are vast and varied across many industries. In aerospace, they’re used in aircraft hydraulic systems, engine components, and airframes, thanks to their impressive strength-to-weight ratio. The marine industry benefits from their exceptional resistance to seawater corrosion, making them a top choice for shipbuilding and offshore platforms. In chemical processing, these fittings effectively manage aggressive media, acids, and alkalis. The oil & gas sector relies on them for pipelines and refineries that operate under extreme conditions. Plus, Titanium Gr 5 Pipe Fittings are also utilized in medical implants, showcasing their versatility and reliability.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
