Ferdi Fittings, based in Istanbul, Turkey, has built a solid reputation as a manufacturer and supplier of Stainless Steel 304 Pipe Fittings. They’re known for providing top-notch, reliable piping solutions that reach customers all over the globe. Thanks to their advanced manufacturing techniques and rigorous quality control, Ferdi Fittings ensures that their products meet international standards, offering impressive corrosion resistance and durability. Stainless Steel 304 is one of the most adaptable and commonly used grades of stainless steel, making these pipe fittings perfect for a wide array of industrial applications. Ferdi Fittings is dedicated to delivering precision-engineered products that promise a long service life and outstanding performance across various industries.
Specifications : ASTM A403 / ASME SA403
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
When it comes to the composition and mechanical properties of Stainless Steel 304 Pipe Fittings, they mainly consist of chromium (18–20%) and nickel (8–10.5%), along with trace amounts of carbon, manganese, silicon, and phosphorus. This austenitic stainless steel grade is known for its remarkable corrosion resistance in different environments, including acidic and mildly alkaline conditions. These fittings boast a tensile strength of about 515 MPa, a yield strength of around 205 MPa, and an elongation of 40%. Their excellent weldability, formability, and resistance to oxidation make them perfect for high-quality piping applications that demand both durability and visual appeal.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 304 | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0-20.0 | – | 8.0-10.5 | 0.10 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |

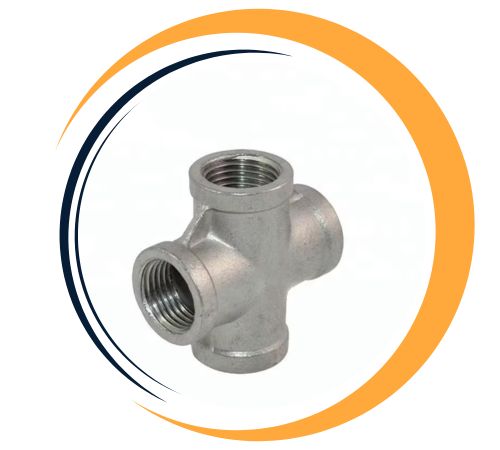

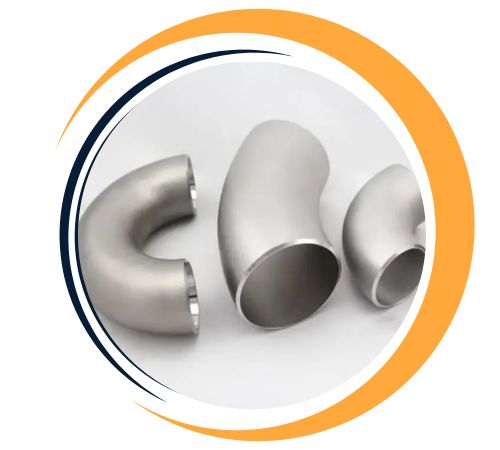

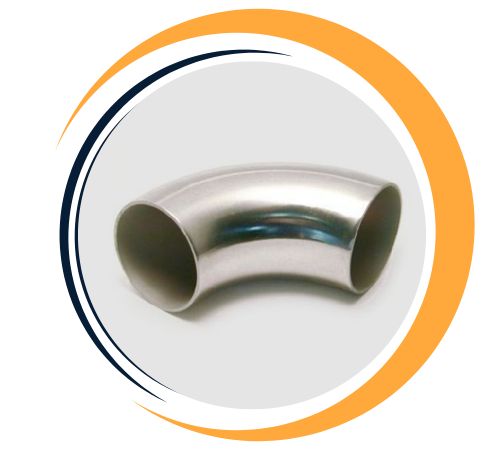

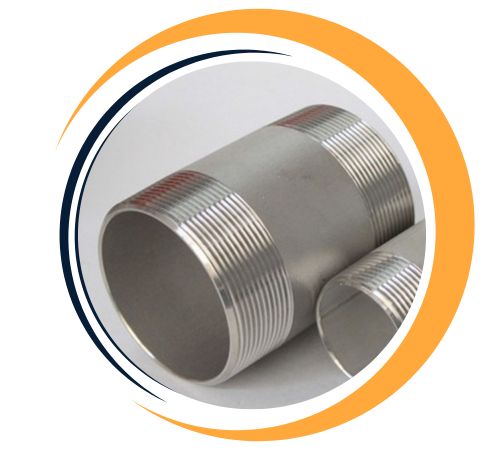

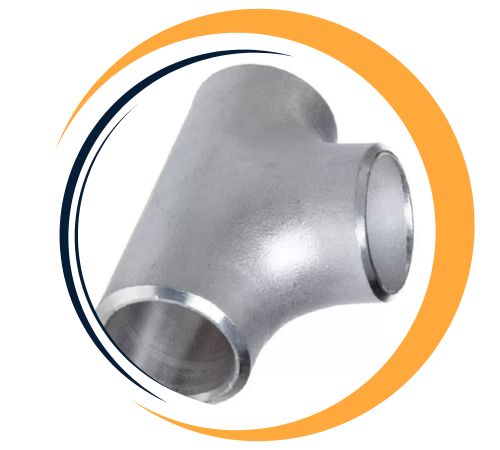

Ferdi Fittings one of the largest suppliers of Stainless Steel 304 Pipe Fittings in Istanbul, Turkey. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 304 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 304 Pipe Fittings in the Turkey.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 304 Pipe Fittings from Ferdi Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| SS 304 | S30400 | 1.4301 | Z7CN18‐09 | X5CrNi18-10 | SUS 304 | 304S31 | 08Х18Н10 |
| Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
(inches) | Long Radius | Short Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Yes, custom sizes are available for Stainless Steel 304 Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@ferdifittings.com.
| Density lbm/in3 | Thermal Conductivity (BTU/h ft. °F) | Electrical Resistivity (in x 10-6) | Modulus of Elasticity (psi x 106 | Coefficient of Thermal Expansion (in/in)/ °F x 10-6 | Specific Heat (BTU/lb/ °F) | Melting Range (°F) |
|---|---|---|---|---|---|---|
| SS 304/304L | ||||||
| at 68°F: 0.285 | 9.4 at 212°F | 28.3 at 68°F | 28 | 9.4 at 32 – 212°F | 0.1200 at 68°F to 212°F | 2500 to 2590 |
| 12.4 at 932 °F | 39.4 at 752°F | 10.2 at 32 – 1000°F | ||||
| 49.6 at 1652 °F | 10.4 at 32 – 1500°F | |||||
Stainless Steel 304 Pipe Fittings find their place in various industries, including food processing, pharmaceuticals, chemical manufacturing, and water treatment, thanks to their outstanding corrosion resistance and hygienic qualities. They’re ideal for piping systems in HVAC, automotive, and architectural applications, where both durability and aesthetics matter. Moreover, these fittings are frequently utilized in marine settings, oil and gas industries, and general industrial piping networks that handle moderate pressure and temperature.
