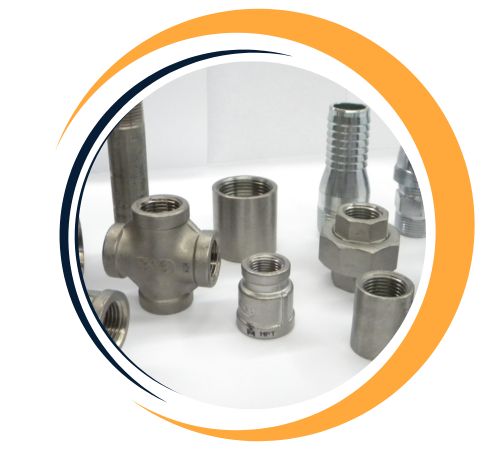

Ferdi Fittings is a leading manufacturer and supplier of Alloy Steel F5 Forged Fittings in Istanbul, Turkey. They offer products designed to meet international quality standards. Known for durability and precision, these fittings are built to effectively handle high-pressure and high-temperature situations. Ferdi Fittings has a solid reputation for quality, ensuring that each product goes through thorough inspections before delivery. Alloy Steel F5 Forged Fittings are perfect for industries like oil, gas, chemicals, and energy, where reliability and performance are essential. Customers trust Ferdi Fittings for strong forged fittings that ensure efficiency and long service life.
| Specification : | ASTM A182 F5 Forged Fittings |
|---|---|
| Pressure Rating | Threaded Fittings = Class 2000, Class 3000, Class 6000 |
| Type Of Pipe systems | 45 Deg Elbow, Equal tee, Full Coupling, Reducing Tee, 90 Deg Elbow, Half Coupling, Street Elbow, Bull Plug, Boss, Union (Male/Female), Lateral Outlet, 45 Lateral Tee, Equal Cross, Pipe Cap, Branch Outlets, Swage Nipple. |
| Thread Connections | ASME B16.11 (Socket Welding and Threaded), MSS-SP-83 (Class Unions), ASME B16.3 (Malleable Iron Fittings), ASME B16.4 ( Gray Iron Fittings), ASME B16.39 (Malleable Iron Unions), ASME B16.34 (Valves — Flanged), ASME B16.39 (Malleable Iron Pipe Unions, 150#, 250#, Or 300#). |
| Standards | ASME B16.11 (American Standard) Fittings, Bs3799 Fittings, MSS SP 79 Fittings, JIS B2302 Fittings, MSS-SP-97 (Threadolet) Fittings, MSS-SP-83 (Union) Fittings, ASME B36.19 (Nipple) Fittings |
| Types Of Thread | NPT Fittings, BSPP Fittings, BSPT Fittings, PF Fittings, PT Fittings, MPT Fittings |
| Applications | Oil and Gas Chemical Power station Water Pipeline Noncritical Applications Fire Protection |
| Advantages Of | Simple Usage Easy installation Economic as cheaper |
| Size | Threaded Fittings = ½” – 4” |
Alloy Steel F5 Forged Fittings have a balanced mix of chromium, molybdenum, and carbon, giving them excellent heat and corrosion resistance. Chromium contributes to hardness and oxidation resistance, while molybdenum enhances strength and durability at higher temperatures. These fittings show high tensile strength, excellent elongation, and superior toughness, making them suitable for demanding industrial environments. With dependable mechanical stability and creep resistance, Alloy Steel F5 fittings maintain integrity under changing thermal and pressure conditions. They also have good weldability and machinability, ensuring adaptability in fabrication and safety in long-term use across various applications.
| Gr | C | Mn | Si | S | P | Cr | Mo |
| ASTM A182 F5 Forged Fittings | 0.15 | 0.3 – 0.6 | 0.5 | 0.03 | 0.03 | 4 – 6 | 0.044 – 0.65 |
| Gr | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| ASTM A182 F5 Forged Fittings | 275 | 485 | 20 |
Ferdi Fittings is a leading supplier of Alloy Steel F5 Forged Fittings in Istanbul, Turkey. We offer an extensive range of Alloy Steel F5 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Alloy Steel F5 Forged Fittings from Ferdi Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Alloy Steel F5 Forged Fittings offer numerous advantages, making them ideal for critical industrial applications. Their high chromium and molybdenum content provides excellent corrosion and oxidation resistance, ensuring durability in harsh environments. These fittings deliver exceptional strength and thermal stability, performing reliably in high-pressure and high-temperature conditions. The forged construction enhances their mechanical properties, ensuring secure, leak-proof connections. They are also resistant to wear and deformation, extending the lifespan of pipeline systems. Cost-effective and versatile, Alloy Steel F5 Forged Fittings are a preferred choice for industries like oil, gas, and power generation.
Yes, custom sizes for Alloy Steel F5 Forged Fittings are available at Ferdi Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@ferdifittings.com.
| STANDARD | UNS | WERKSTOFF NR. | Trade Name |
| ASTM A182 F5 Forged Fittings | K41545 | 1.7362 | 5Cr-1/2Mo |
| DN | NPS | Center to End NPT Elbow, NPT Tee, NPT Cross A | Center to End 45 Deg Elbow C | O.D. of Band H | Min. Wall Thick. G | Length of Thread. Minimum (1) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | B | L2 | ||
| 6 | 1/8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
| 8 | 1/4 | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 | 10.2 |
| 10 | 3/8 | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
| 15 | 1/2 | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
| 20 | 3/4 | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
| 25 | 1 | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
| 32 | 1-1/4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 | 18.0 |
| 40 | 1-1/2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
| 50 | 2 | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 86 | 102 | 4.27 | 7.14 | 12.09 | 19.0 | 19.2 |
| 65 | 2-1/2 | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
| 85 | 3 | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
| 100 | 4 | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 | 33.0 |
| Normal Pipe Size | A | B | QTY | Weight In KG |
|---|---|---|---|---|
| ¼ | 0.81 | 0.88 | 160 | 0.20 |
| ⁄ | 0.97 | 1.00 | 130 | 0.26 |
| ½ | 1.12 | 1.31 | 100 | 0.57 |
| ¾ | 1.31 | 1.5 | 75 | 0.71 |
| 1 | 1.5 | 1.81 | 40 | 1.08 |
| 1 ¼ | 1.75 | 2.19 | 25 | 1.68 |
| 1 ½ | 2.00 | 2.44 | 18 | 2.38 |
| 2 | 2.38 | 2.97 | 10 | 3.55 |
| 2 ½ | 3.00 | 3.62 | 4 | 6.22 |
| 3 | 3.38 | 4.31 | 2 | 10.36 |
| 4 | 4.19 | 5.75 | 1 | 23.91 |
Alloy Steel F5 Forged Fittings are commonly used in industries that need fittings capable of withstanding extreme heat and pressure. They are essential in power generation plants, petrochemical units, and oil refineries. Their resistance to oxidation and corrosion makes them suitable for high-temperature steam pipelines, superheaters, and reheaters. Additionally, they are found in offshore drilling, energy plants, and chemical processing equipment. Their toughness and durability make them ideal for transporting fluids and gases in critical service situations. Alloy Steel F5 Forged Fittings ensure efficient operation, safety, and extended service life across various industrial applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
