Low Temperature A420 WPL6 Pipe Fittings Manufacturer and Supplier in Istanbul, Turkey

Ferdi Fittings, located in Istanbul, Turkey, is a reliable manufacturer and supplier of precision-engineered pipe fittings, including Low Temperature A420 WPL6 Pipe Fittings, crafted specifically for sub-zero applications. These fittings are produced in accordance with ASTM A420 and ASME B16.9 standards, making them perfect for cryogenic and low-temperature service systems. Ferdi Fittings is dedicated to providing high-quality, durable, and dimensionally accurate fittings that perform consistently under extreme conditions. Catering to industries like oil & gas, LNG, petrochemicals, and power generation, Ferdi Fittings ensures safe and efficient fluid flow in critical piping systems around the globe.

Low Temperature A420 WPL6 Pipe Fittings Price List in Istanbul, Low Temperature A420 WPL6 Pipe Fittings Supplier in Bursa, Low Temperature A420 WPL6 Pipe Fittings Exporter in Ankara, Low Temperature A420 WPL6 Pipe Fittings Supplier in Ankara, Low Temperature A420 WPL6 Pipe Fittings Exporter in Bodrum, Low Temperature A420 WPL6 Pipe Fittings Size Chart, Low Temperature A420 WPL6 Pipe Fittings Price in Antalya, Low Temperature A420 WPL6 Pipe Fittings in Istanbul, Low Temperature A420 WPL6 Pipe Fittings Supplier in İzmir, Low Temperature A420 WPL6 Pipe Fittings Stockist in Bursa, Low Temperature A420 WPL6 Pipe Fittings Exporter in Turkey

Low Temperature A420 WPL6 Pipe Fittings Specification

Specification : ASTM A420 / ASME SA420

Dimension Standard : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)

Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Type : Seamless / Welded / Fabricated

A420 WPL6 Pipe Fittings are constructed from fine-grain carbon steel, enhanced with elements such as manganese, phosphorus, sulfur, and silicon to boost strength and ductility. These fittings undergo normalization and heat treatment to ensure reliable performance at temperatures as low as -46°C (-50°F). They boast a minimum tensile strength of 485 MPa and a yield strength of 240 MPa, along with impressive impact resistance and notch toughness. Fully compliant with ASTM A420 specifications, WPL6 fittings are perfect for maintaining structural integrity and safety in low-temperature, high-pressure piping systems.

Low Temperature A420 WPL6 Pipe Fittings Chemical Compostion

Grade	C	Mn	Si	S	P	Cr	Mo
A420 WPL6	0.3	0.60-1.35	0.15-0.30	0.04	0.035	0.3	0.12

Low Temperature A420 WPL6 Pipe Fittings Mechanical Properties

Grade	Tensile Strength (Mpa)	Yield Strength (Mpa)
A420 WPL6	60-85[415-585]	35[240]

Low Temperature A420 WPL6 Pipe Fittings Exporter in Turkey, Low Temperature A420 WPL6 Pipe Fittings Price List in Istanbul, Low Temperature A420 WPL6 Pipe Fittings Supplier in Bursa, Low Temperature A420 WPL6 Pipe Fittings Exporter in Ankara, Low Temperature A420 WPL6 Pipe Fittings Exporter in Bodrum, Low Temperature A420 WPL6 Pipe Fittings in Antalya, Low Temperature A420 WPL6 Pipe Fittings Size Chart, Low Temperature A420 WPL6 Pipe Fittings Price in Antalya, Low Temperature A420 WPL6 Pipe Fittings Weight Chart, Low Temperature A420 WPL6 Pipe Fittings Supplier in İzmir, Low Temperature A420 WPL6 Pipe Fittings Stockist in Bursa

Largest Low Temperature A420 WPL6 Pipe Fittings Supplier in Istanbul, Turkey

Ferdi Fittings is a leading supplier of Low Temperature A420 WPL6 Pipe Fittings in Istanbul, Turkey. We offer an extensive range of Low Temperature A420 WPL6 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Why Choose Low Temperature A420 WPL6 Pipe Fittings from Ferdi Fittings?

Choose Low Temperature A420 WPL6 Pipe Fittings from Ferdi Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.

Low Temperature A420 WPL6 Pipe Fittings Exporter in Bursa, Low Temperature A420 WPL6 Pipe Fittings Sizes in mm, Low Temperature A420 WPL6 Pipe Fittings Manufacturer in Ankara, Low Temperature A420 WPL6 Pipe Fittings Thickne Alloy Steel Weld Neck, Low Temperature A420 WPL6 Pipe Fittings Supplier in Istanbul, Low Temperature A420 WPL6 Pipe Fittings Price List in İzmir, Low Temperature A420 WPL6 Pipe Fittings Distributor in Bodrum, Low Temperature A420 WPL6 Pipe Fittings Supplier in Ankara, Low Temperature A420 WPL6 Pipe Fittings Distributor in Turkey

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

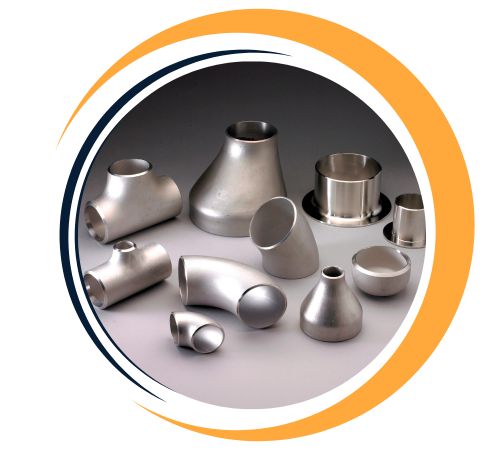

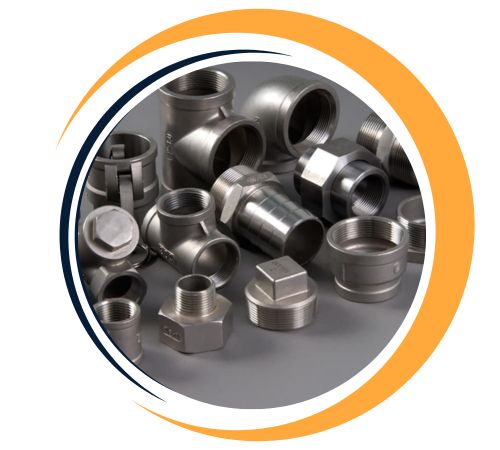

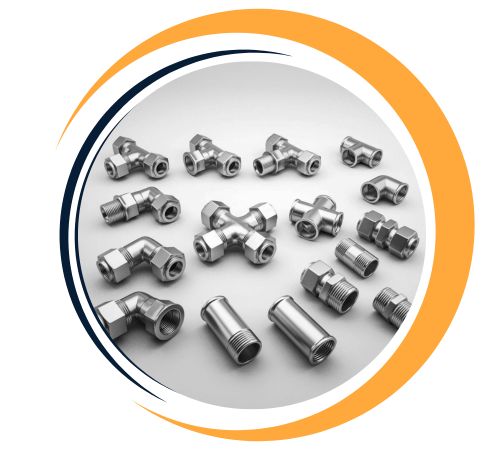

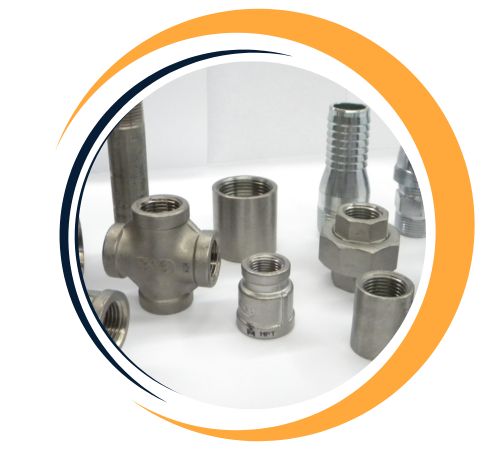

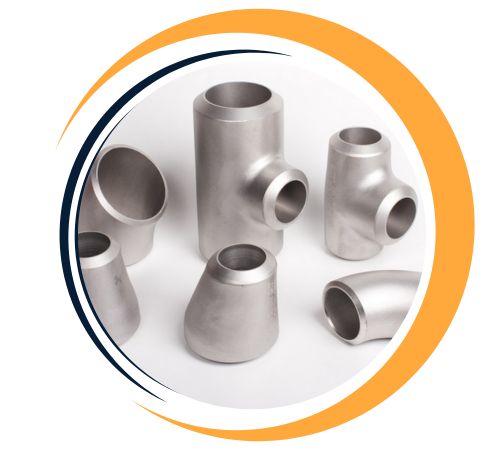

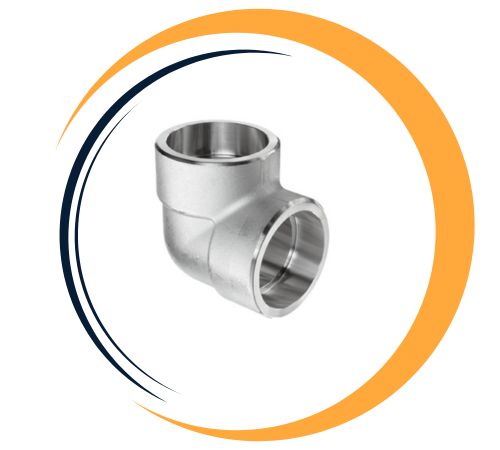

Types of Low Temperature A420 WPL6 Pipe Fittings

Are Custom Sizes Available for Low Temperature A420 WPL6 Pipe Fittings?

Yes, custom sizes for Low Temperature A420 WPL6 Pipe Fittings are available at Ferdi Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@ferdifittings.com

Low Temperature A420 WPL6 Pipe Fittings Equivalent Grades

Material	Fttg	Valves	Flg	Pipes	Bolts and Nuts
Low Temperature Carbon Steel Alloy Low-Temp	A420 Gr WPL6	A352 Gr LCB	A350 Gr LF2	A333 Gr 6	A320 Gr L7 A194 Gr 7
Low Temperature Carbon Steel Alloy Low-Temp	A420 Gr WPL3	A352 Gr LC3	A350 Gr LF3	A333 Gr 3	A320 Gr L7 A194 Gr 7

Low Temperature A420 WPL6 Pipe Fittings Dimensions

Nom. Pipe Size	ASTM A420 Carbon Steel 90° Elbows								ASTM A420 Carbon Steel 45° Elbows				ASTM A420 Carbon Steel 180° Return Long Radius
	Long Radius				Short Radius		3R		Long Radius		3R		STD	XS
	STD	XS	SCH. 160	XXS	STD	XS	STD	XS	STD	XS	STD	XS	STD	XS
½	.18	.25							.09	.19			.35
¾	.19	.25							.09	.19			.40	.65
1	.40	.50	.60	.75	.25				0.25	.31			.75	1.00
1¼	.60	.90	1.00	1.38	.4				0.38	.50			1.25	1.75
1½	.90	1.15	1.80	1.50	.56	.75			.40	.69			1.88	2.39
2	1.60	2.20	3.25	3.50	1.00	1.50	3.00	4.00	.81	1.19	1.5	2.1	3.23	4.40
2½	3.25	4.00	5.13	7.00	2.13	2.80	6.00	8.00	1.75	2.13	3.00	4.00	6.50	8.00
3	5.00	6.50	8.50	11.0	3.00	4.25	10.0	13.0	2.63	3.50	5.00	7.00	10.25	13.00
3½	6.75	8.35		16.0	4.50	6.00	13.0	18.0	3.50	4.50	7.00	9.00	13.00	16.75
4	9.00	13.5	18.0	20.0	6.25	8.50	18.0	25.0	4.50	6.10	9.00	13.0	18.5	25.0
5	15.0	22.0	32.0	36.0	9.60	14.0	29.0	43.0	7.50	10.7	15.0	22.0	30.0	44.0
6	24.5	35.0	57.0	65.0	18.0	23.0	45.0	70.0	12.0	17.5	23.0	35.0	50.0	70.0
8	50.0	71.0	120	118	34.0	47.5	90.0	140	23.0	35.0	45.0	70.0	95.0	142
10	88.0	107	260		58.0	70.0	159	218	43.0	53.0	80.0	109	117	215
12	125	160	450		80.0	104	233	310	62.0	84.0	117	155	230	320
14	160	205	572		105	140	298	400	80.0	100	149	200	325	400
16	206	276			132	174	390	520	100	135	195	260	412	550
18	260	340			167	219	495	660	126	167	248	330	510	690
20	320	420			210	275	610	810	160	206	305	405	640	830
22	394	520					735	980	197	260	368	490	787	1040
24	460	600			298	392	875	1170	238	300	438	585	890	1200
26	550	729					1030	1370	275	365	515	685
30	734	975					1370	1830	367	488	685	915
36	1062	1412					1970	2630	531	706	985	1315

Low Temperature A420 WPL6 Pipe Fittings Supplier in Istanbul, Low Temperature A420 WPL6 Pipe Fittings Weight Chart, Low Temperature A420 WPL6 Pipe Fittings Exporter in Bursa, Low Temperature A420 WPL6 Pipe Fittings Manufacturer in Ankara, Low Temperature A420 WPL6 Pipe Fittings Price List in İzmir, Low Temperature A420 WPL6 Pipe Fittings Sizes in mm, Low Temperature A420 WPL6 Pipe Fittings Distributor in Bodrum, Low Temperature A420 WPL6 Pipe Fittings in Antalya, Low Temperature A420 WPL6 Pipe Fittings Distributor in Turkey

Application Industry of Low Temperature A420 WPL6 Pipe Fittings

A420 WPL6 Pipe Fittings play a crucial role in industries that demand strong performance in low-temperature and high-pressure environments. Frequently found in LNG facilities, cryogenic gas processing, oil & gas transportation, offshore platforms, and refineries, these fittings ensure secure, leak-proof connections for vital systems. Their toughness and structural integrity at sub-zero temperatures make them ideal for fluid and gas flow applications in arctic and cold-climate regions. Ferdi Fittings provides a wide range of elbows, tees, reducers, and caps, all manufactured to the highest standards.
