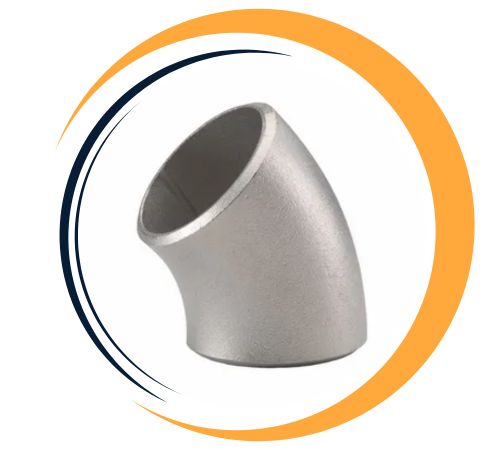

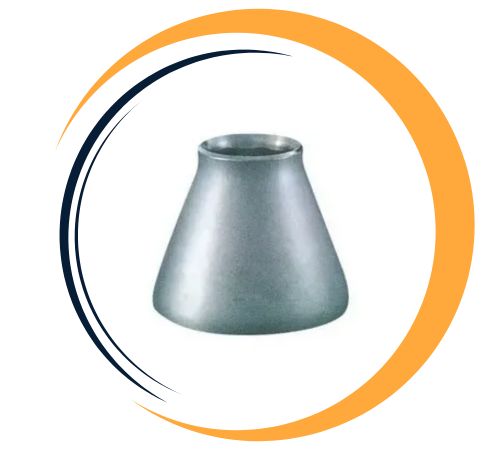

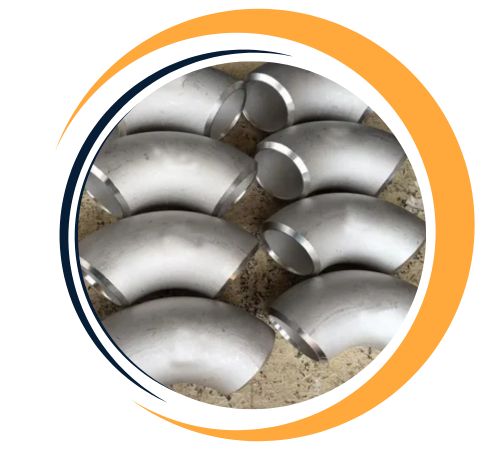

Super Duplex Steel S32760 Pipe Fittings are highly sought after for their outstanding corrosion resistance, impressive strength, and long-lasting durability, making them perfect for tough industrial settings. Crafted from Super Duplex stainless steel UNS S32760, these fittings excel in resisting pitting, crevice corrosion, and stress corrosion cracking, even in harsh environments like seawater, acids, and various chemicals. Their robust mechanical strength allows for thinner walls without sacrificing performance, which means they’re both efficient and cost-effective. Available in a variety of shapes like elbows, tees, reducers, and caps, Super Duplex Steel S32760 Pipe Fittings ensure dependable, leak-free connections in sectors such as oil & gas, chemical processing, petrochemicals, desalination, and offshore operations.
| Specification | ASTM A815/ ASME SA815 |
| Standard | EN, ISO, DIN, JIS, NPT |
| Dimension Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type Of Dimension | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Type | Seamless / Welded / Fabricated |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| Schedule | Schedule 5 TO Schedule XXS. |
These fittings are primarily made of iron, enriched with significant amounts of chromium (24–26%), nickel (6–8%), molybdenum (3–5%), and a touch of nitrogen. This special blend grants them remarkable resistance to chlorides, oxidizing acids, and tough chemical environments, while also providing excellent tensile and yield strength. They boast high toughness, fatigue resistance, and stability at elevated temperatures, ensuring they perform reliably even under extreme conditions. Plus, their great weldability and formability make them ideal for intricate piping systems where long-term durability and mechanical integrity are essential.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32760 | 7.8 | 0.281 | 1350 | 2460 |
Ferdi Fittings is a leading supplier of Super Duplex Steel S32760 Pipe Fittings in Istanbul, Turkey. We offer an extensive range of Super Duplex Steel S32760 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex S32760 | 1.4410 | S32760 |
Super Duplex Steel S32760 Pipe Fittings from Ferdi Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Super Duplex Steel S32760 pipe fittings offer exceptional corrosion resistance, especially against pitting, crevice corrosion, and stress corrosion cracking, making them ideal for harsh environments like seawater, chemical processing, and oil and gas industries. They combine high strength and excellent toughness, ensuring reliable performance under extreme pressure and temperature conditions. With excellent weldability, these fittings are easy to fabricate, reducing installation time and costs. Their resistance to chloride-induced corrosion and superior mechanical properties enhance longevity, making them a cost-effective solution for demanding industrial applications.

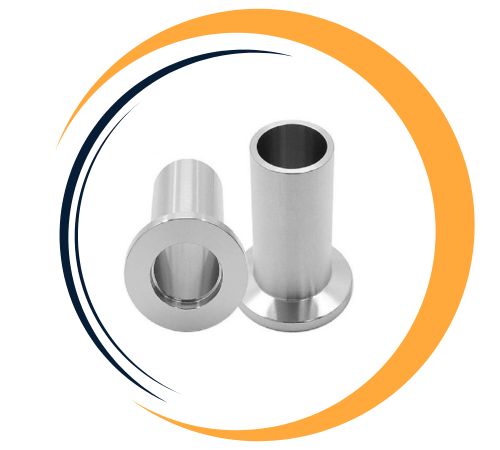

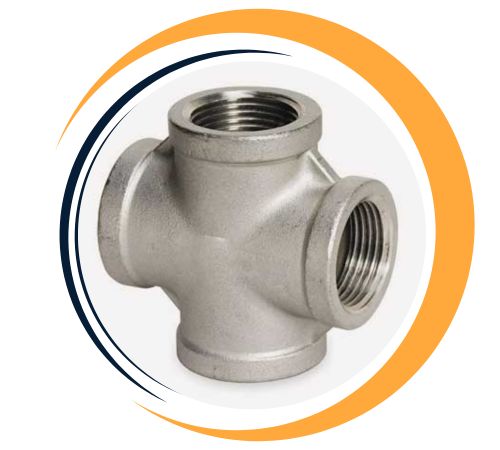

| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Yes, custom sizes for Super Duplex Steel S32760 Pipe Fittings are available at Ferdi Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@ferdifittings.com.
Super Duplex Steel S32760 Pipe Fittings find applications across a broad spectrum of industries that demand high-performance and corrosion-resistant components. In the oil & gas industry, they’re utilized in pipelines, refineries, and offshore platforms that face harsh seawater and chemical conditions. The chemical and petrochemical sectors use them for managing acids, alkalis, and other aggressive substances. Desalination plants and marine engineering projects depend on these fittings for seawater systems. They’re also used in power generation, industrial processing, and any environment where reliability is key.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
