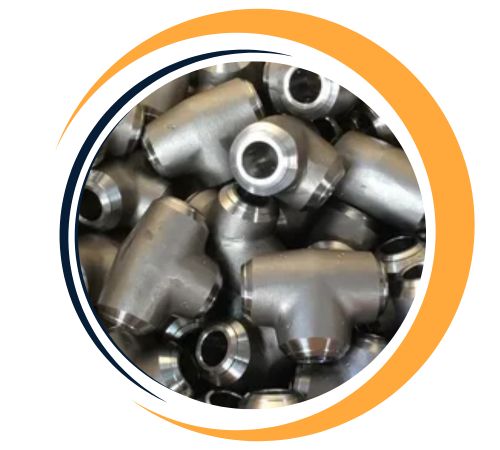

Titanium Gr 2 Forged Fittings are celebrated for their remarkable resistance to corrosion, impressive durability, and fantastic strength-to-weight ratio, making them a go-to option for tough applications. Crafted from commercially pure titanium, these fittings excel in both oxidizing and mildly reducing environments, as well as in conditions rich in chlorides. Their lightweight yet robust nature guarantees efficient performance without sacrificing structural integrity. You can find them in various types, including socket weld and threaded fittings, and they’re widely utilized in industries like chemical processing, marine, aerospace, power generation, and oil & gas, where reliable and safe operations are a must.
| Standards | ASTM B381 / ASME SB381 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Thread | NPT, BSPT, BSPP |
| Test Certificates |
|

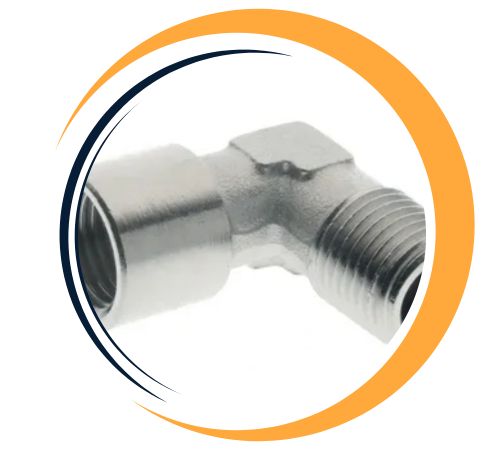

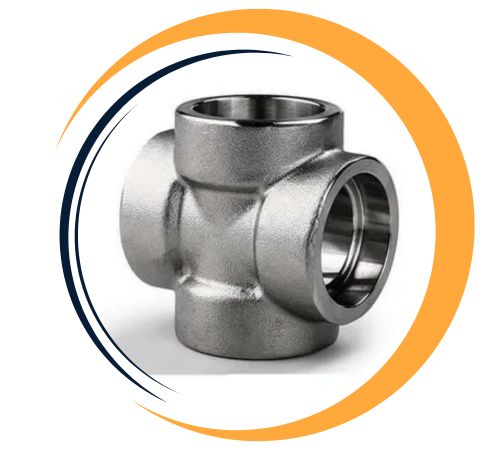

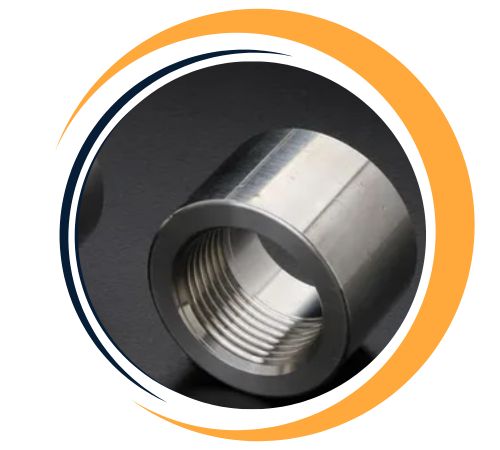

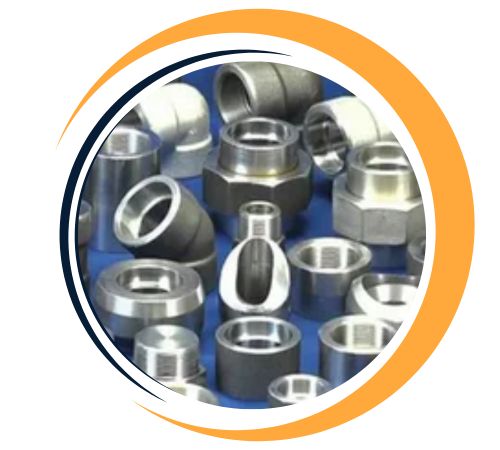

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducer Inserts, Barrel Nipple, Unions, Bushing, Socket Weld / Screwed-Threaded Fittings, Plugs |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
Titanium Grade 5 Buttweld Fittings, often called Ti-6Al-4V, are made up of roughly 90% titanium, 6% aluminum, and 4% vanadium. This alloy is celebrated for its impressive strength-to-weight ratio, outstanding corrosion resistance, and solid toughness. Typically, these fittings boast a tensile strength of about 950 MPa and a yield strength of around 880 MPa, with elongation rates ranging from 10% to 15%. Titanium Grade 5 maintains its mechanical integrity even at high temperatures and offers good weldability, making it an excellent choice for demanding industrial applications where performance and reliability are essential.
These fittings are primarily made of commercially pure titanium (about 99% Ti), with carefully controlled levels of elements such as oxygen, carbon, nitrogen, hydrogen, and iron. This specific composition provides excellent corrosion resistance in seawater, chlorides, and oxidizing environments. They offer moderate tensile strength, exceptional ductility, and superior toughness, ensuring dependable performance even in cryogenic temperatures. Titanium Grade 2 also boasts great weldability and formability, allowing these fittings to be shaped into complex designs. Their unique combination of lightweight structure, corrosion resistance, and mechanical strength makes them perfect for industries that need reliable and durable forged connections.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Gr 2 Forged Fittings from Ferdi Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| Nom, Pipe Size | Sock, Bore Diameter B | Depth of Sock, Min | Wall Thickness Minimum | Bore Diameter of Fitting D | Centre to Bottom of Socket | Laying Lengths | Tolerances, ± | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3000# | 6000# | 90º Ells, Tee & Crosses | 45º Ell | Couplings | Half Couplings | ||||||||||||
| A | A | E | F | A | E | F | |||||||||||
| Sock, C | Body G | Sock C | Body G | 3000# | 6000# | 3000# | 6000# | 3000# | 6000# | ||||||||
| 1/8” | .420 .430 | 3/8 | .125 | .095 | .135 | .124 | .254 .284 | .141 | 7/16 | 7/16 | 5/16 | 5/16 | 1/4 | 5/8 | .03 | .06 | .03 |
| 1/4 | .555 .565 | 3/8 | .130 | .119 | .158 | .145 | .349 .379 | .235 | 7/16 | 17/32 | 5/16 | 5/16 | 1/4 | 5/8 | .03 | .06 | .03 |
| 3/8 | .690 .700 | 3/8 | .138 | .126 | .172 | .158 | .478 .508 | .344 | 17/32 | 5/8 | 5/16 | 7/16 | 1/4 | 11/16 | .06 | .12 | .06 |
| 1/2 | .855 .865 | 3/8 | .161 | .147 | .204 | .188 | .607 .637 | .451 | 5/8 | 3/4 | 7/16 | 1/2 | 3/8 | 7/8 | .06 | .12 | .06 |
| 3/4 | 1.065 1.075 | 1/2 | .168 | .154 | .238 | .219 | .809 .839 | .599 | 3/4 | 7/8 | 1/2 | 9/16 | 3/8 | 15/16 | .06 | .12 | .06 |
| 1 | 1.330 1.340 | 1/2 | .196 | .179 | .273 | .250 | 1.034 1.064 | .800 | 7/8 | 1-1/16 | 9/16 | 11/16 | 1/2 | 1-1/8 | .08 | .16 | .08 |
| 1-1/4 | 1.675 1.685 | 1/2 | .208 | .191 | .273 | .250 | 1.365 1.395 | 1.145 | 1-1/16 | 1-1/4 | 11/16 | 13/16 | 1/2 | 1-3/16 | .08 | .16 | .08 |
| 1-1/2 | 1.915 1.925 | 1/2 | .218 | .200 | .307 | .281 | 1.595 1.625 | 1.323 | 1-1/4 | 1-1/2 | 13/16 | 1 | 1/2 | 1-1/4 | .08 | .16 | .08 |
| 2 | 2.406 2.416 | 5/8 | .238 | .218 | .374 | .344 | 2.052 2.082 | 1.674 | 1-1/2 | 1-5/8 | 1 | 1-1/8 | 3/4 | 1-5/8 | .08 | .16 | .08 |
| 2-1/2 | 2.906 2.921 | 5/8 | .301 | .276 | .375 | 2.439 2.499 | 1-5/8 | 1-1/8 | 3/4 | 1-11/16 | .10 | .20 | .10 | ||||
| 3 | 3.535 3.550 | 5/8 | .327 | .300 | .438 | 3.038 3.098 | 2-1/4 | 1-1/4 | 3/4 | 1-3/4 | .10 | .20 | .10 | ||||
| 4 | 4.545 4.560 | 3/4 | .368 | .337 | .531 | 3.996 4.055 | 2-5/8 | 1-5/8 | 3/4 | 1-7/8 | .10 | .20 | .10 | ||||
| ASTM B381 / SB381 | Standard Specification for Titanium and Titanium Alloy Forgings |
| BS21 | Threading. |
| BS3799 | Specification for Forged fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged fittings socket-weld and threaded. Socket Weld and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Titanium fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Titanium Gr 2 Forged Fittings offer numerous advantages, including excellent corrosion resistance, particularly in oxidizing and mildly reducing environments, making them ideal for chemical and marine applications. They are lightweight yet exceptionally strong, with a high strength-to-weight ratio. These fittings also provide outstanding biocompatibility, making them suitable for medical and aerospace applications. Their high ductility allows for easy fabrication, while their durability ensures a long service life even under extreme conditions. Additionally, Titanium Gr 2’s thermal conductivity and resistance to high temperatures enhance its versatility across various industries.
Yes, custom sizes for Titanium Gr 2 Forged Fittings are available at Ferdi Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@ferdifittings.com.
The applications of Titanium Gr 2 Forged Fittings are vast and varied. In the chemical sector, they’re used in pipelines, pumps, and valves that deal with aggressive acids and alkalis. The marine industry counts on them for seawater systems, desalination plants, and offshore platforms, thanks to their resistance to saltwater corrosion. In aerospace, they find their place in hydraulic systems and structural components where reducing weight is essential. The oil & gas industry relies on them for critical refineries and pipelines, ensuring safety and longevity in their operations.
