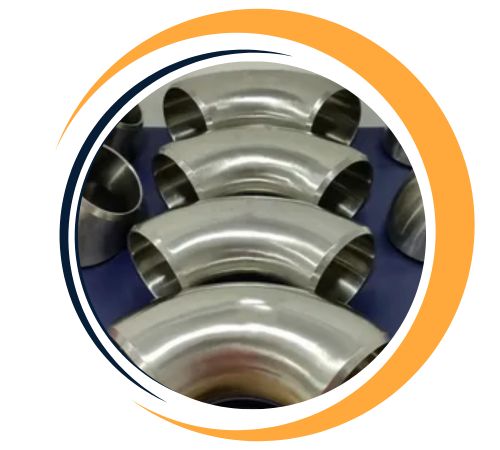

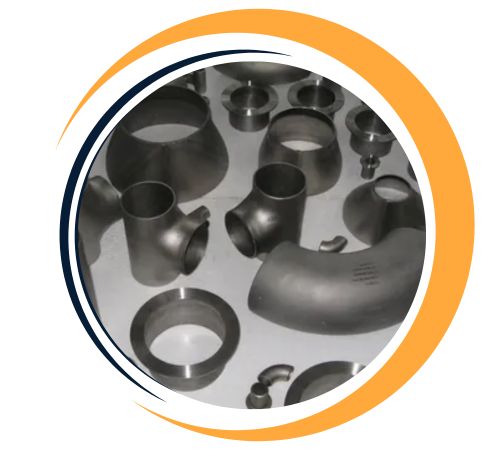

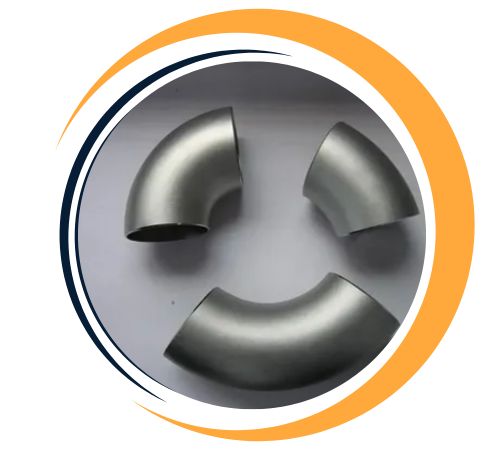

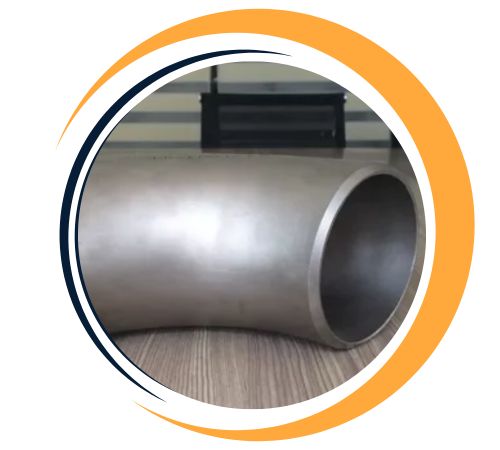

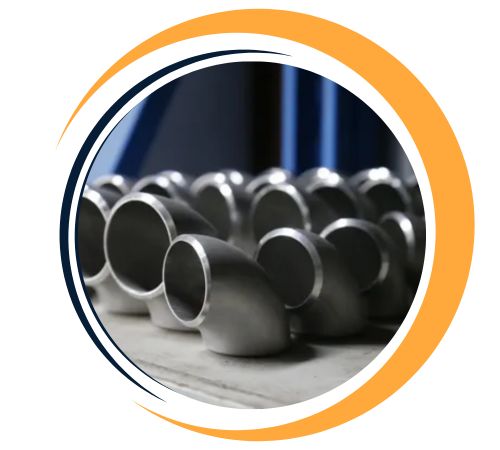

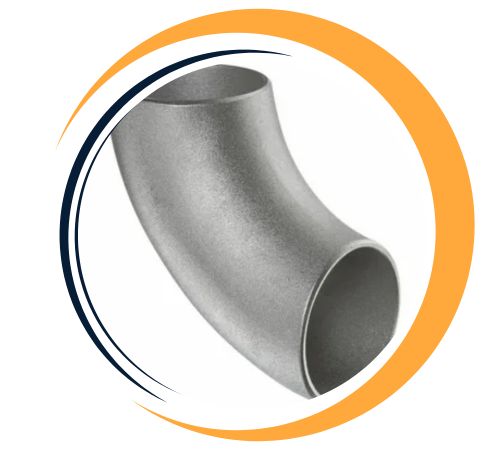

Titanium Grade 2 Buttweld Fittings are well-known for their impressive corrosion resistance, fantastic strength-to-weight ratio, and remarkable durability, making them a go-to choice in tough industrial settings. Crafted from commercially pure titanium, these fittings excel in environments that are oxidizing, mildly reducing, or contain chlorides. Their lightweight design, paired with high ductility and toughness, makes them easy to fabricate and install. You can find Titanium Gr 2 Buttweld Fittings in various forms like elbows, tees, reducers, and caps, which makes them perfect for critical applications in industries such as chemical processing, marine, aerospace, power generation, and oil & gas, where a long service life is crucial.
| Specifications | ASTM B363 / ASME SB363 |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | ½”NB to 24″NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Type | Seamless, ERW, Welded, Fabricated |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS, Custom Thickness. |
| Pipe Fittings Type | Reducer (Concentric & Eccentric), CAP, Stubend (Long &Short), Nipple (Barrel), Bend (Long & Short), Elbow (180 Deg., 90 Deg. & 45 Deg.), Tee (Equal & Unequal) |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 39900 , MPa – 275 | Psi – 49900 , MPa – 344 | 20 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
These fittings are made from commercially pure titanium (around 99% Ti) with trace amounts of elements like iron, oxygen, carbon, nitrogen, and hydrogen. This unique blend gives them exceptional resistance to corrosion, especially against seawater, chlorides, and oxidizing agents. They offer moderate tensile strength, outstanding toughness, and superior ductility, maintaining their stability even in cryogenic conditions. Lightweight yet robust, Titanium Gr 2 fittings ensure reliable performance under high pressure and temperature. Plus, their excellent weldability and formability make them ideal for complex piping systems in industries that demand efficiency and reliability.
Ferdi Fittings is a leading supplier of Titanium Grade 2 Buttweld Fittings in Istanbul, Turkey. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Grade 2 Buttweld Fittings from Ferdi Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Titanium Grade 2 Buttweld Fittings offer numerous advantages, including exceptional corrosion resistance, particularly in acidic and marine environments. Their high strength-to-weight ratio ensures durability while keeping systems lightweight. These fittings are highly resistant to oxidation, ensuring long-term performance without degradation. Additionally, Titanium Grade 2 offers excellent weldability and formability, making installation and maintenance easier. Their resistance to stress and fatigue enhances the reliability of piping systems under extreme conditions. Ideal for industries such as aerospace, chemical, and marine, Titanium Grade 2 Buttweld Fittings provide optimal performance and longevity.
| ASME B16.9 ASTM B363 Grade 2 Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| MSS SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
| All Fittings | 90°and 45° Ells and Tees | Reducers and Lap Joint Stub | Caps | 180° Returns | Angularity Tol | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Pipe Plane Size (NPS) | Outside(1) Diameter at Bevel | Inside(1) Diameter at End | Wall(2) Thickness | Centre-to- End Dimension A,B,C,M | Overall Length L | Overall Length E | Centre-to- Centre Dimension O | Back-to- Face Dimension K | Alignment at Ends U | Nominal Pipe SIze | Off Angle Q | Off Angle P |
| 1/2 TO 2-1/2 | +1/16 | ±1/32 | Not less than 87-1/2% of Normal Thickness | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 12 to 4 | 1/32 | 1/16 |
| -1/32 | 5 to 8 | 1/16 | 1/8 | |||||||||
| 3 TO 3-1/2 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 10 to 12 | 3/32 | 3/16 | |
| 4 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 14 to 16 | 3/32 | 1/4 | |
| 5 TO 8 | +1/32 | ±1/16 | ±1/16 | ±1/16 | ±1/4 | ±1/4 | ±1/4 | ±1/32 | 18 to 24 | 1/8 | 3/8 | |
| -1/16 | ||||||||||||
| 10 TO 18 | +1/16 | ±1/8 | ±3/32 | ±3/32 | ±1/4 | ±3/8 | ±1/4 | ±1/16 | All dimensions are in inches | |||
| -1/8 | ||||||||||||
| 20 TO 24 | +1/4 | ±3/32 | ±3/32 | ±3/32 | ±1/4 | ±3/8 | ±1/4 | ±1/16 | ||||
| -3/32 | ||||||||||||
Yes, custom sizes for Titanium Grade 2 Buttweld Fittings are available at Ferdi Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@ferdifittings.com.
The applications of Titanium Grade 2 Buttweld Fittings span a wide range of sectors thanks to their impressive mechanical and chemical properties. In the chemical industry, they are used for pipelines and process equipment that handle aggressive chemicals and acids. The marine and offshore sectors rely on them for seawater systems, desalination plants, and offshore platforms due to their resistance to saltwater corrosion. In aerospace, they find their place in hydraulic systems, fuel lines, and structural assemblies where reliability is key.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
