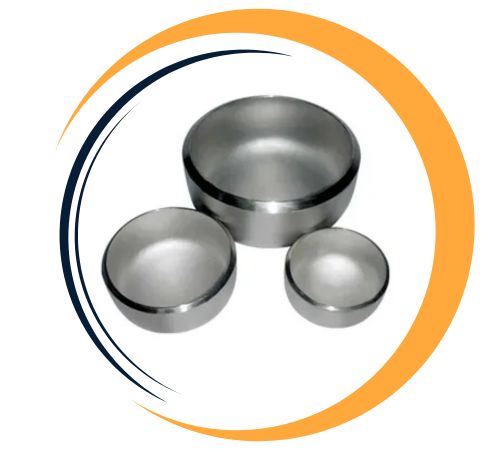

Ferdi Fittings is a well-known manufacturer and supplier of Stainless Steel 316H Buttweld Fittings in Istanbul, Turkey. These fittings are recognized for their strength at high temperatures and superior resistance to corrosion. The higher carbon content in 316H compared to standard 316 improves creep strength, making it suitable for high-temperature applications. Ferdi Fittings focuses on precise manufacturing and testing to deliver products that meet strict global standards. Customers in the oil and gas, petrochemical, and power industries depend on Ferdi Fittings for robust and reliable 316H buttweld fittings.
| Specifications | ASTM A403 / ASME SA403 |
| Size | Seamless Butt Weld Fittings: 1/2″ – 24″, Welded Butt Weld Fittings: 1/2″ – 48″ |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | Seamless / Welded / Fabricated |
Stainless Steel 316H contains 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, along with a higher carbon content (0.04–0.10%) than 316/316L. Molybdenum enhances resistance to pitting and crevice corrosion while the higher carbon content ensures better creep and tensile strength at elevated temperatures. Mechanical properties include tensile strength around 515 MPa, yield strength around 205 MPa, and elongation of at least 40%. 316H maintains its structural integrity in hot conditions and offers excellent resistance to environments with chlorides. Its combination of strength, toughness, and resistance to corrosion makes it a preferred option for buttweld fittings.
| Grade | 316/316H/316L | |
|---|---|---|
| min | max | |
| C | – | 0.035 |
| Mn | – | 2.0 |
| Si | – | 0.75 |
| P | – | 0.045 |
| S | – | 0.030 |
| Cr | 16.0 | 18.0 |
| Mo | 2.0 | 3.0 |
| Ni | 10.0 | 14.0 |
| N | – | – |
Ferdi Fittings is a leading supplier of Stainless Steel 304L Buttweld Fittings in Istanbul, Turkey. We offer an extensive range of Stainless Steel 304L Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 304L Buttweld Fittings from Ferdi Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Stainless steel 316H Buttweld Fittings provide exceptional corrosion resistance, especially in high-temperature environments, making them ideal for chemical, petrochemical, and marine applications With high strength and durability these fittings maintain structural integrity in high-pressure and high-pressure conditions. The advanced carbon content of the 316H grade increases its strength at elevated temperatures, making it suitable for heat exchanger and boiler systems. These materials also exhibit excellent weldability and resist pitting, crevice corrosion, and chloride stress corrosion, providing durability and reliable performance in harsh environments.
| Nominal Pipe Size (inches) | Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) | Radius (inches) | Center to Face (inches) | Center to Face (inches) | Center to Center (inches) | Back to face (inches) | |
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
Yes, custom sizes for Stainless Steel 304L Buttweld Fittings are available at Ferdi Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@ferdifittings.com.
316H buttweld fittings are commonly used in high-temperature and corrosive applications such as refineries, power plants, petrochemical processing, boilers, and heat exchangers. Their high creep resistance makes them ideal for pressure piping and superheater components in high-temperature service. They are also found in chemical plants handling chlorides, acids, and other harsh substances. Their resistance to marine and coastal corrosion makes them well-suited for shipbuilding and offshore platforms.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
