Stainless Steel 316TI Buttweld Fittings Manufacturer and Supplier in Istanbul, Turkey

Ferdi Fittings, based in Istanbul, Turkey, stands out as a leading manufacturer and supplier of Stainless Steel 316Ti Buttweld Fittings. They’re well-known for providing top-notch piping solutions across various industries. With a strong commitment to quality, precision, and reliability, Ferdi Fittings ensures that their products meet international standards and excel in high-temperature and corrosive settings. By employing advanced manufacturing techniques and thorough quality checks, they guarantee the durability and consistency of their fittings. Trusted for their exceptional mechanical properties, these Stainless Steel 316Ti Buttweld Fittings offer a long service life and impressive resistance to intergranular corrosion and oxidation.

Stainless Steel 316TI Pipe Elbow In Turkey, Stainless Steel 316TI Pipe Fittings İzmir, SS 316TI Buttweld Elbow Istanbul, Stainless Steel S31635 Seamless Fittings Exporter Ankara, Stainless Steel 1.4571 Butt Weld Pipe Fittings in Bursa, Stainless Steel 316TI Two Joint Pipe Fittings Bodrum, 316TI Stainless Steel Welded Fittings Manufacturers in Antalya, Stainless Steel 316TI Buttweld Fittings In Turkey, ASTM A403 WP3 316TI Stainless Steel Buttweld Fittings Supplier in Istanbul, Turkey.

Stainless Steel 316TI Buttweld Fittings Specification

Specifications	ASME SA403 / ASTM A403
Dimension Standard	ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49
Standard Size Range	1/2” NB TO 48” NB. (Fabricated, Seamless and 100% X-Ray Welded)
Manufacturing Type	Fabricated / Seamless / Welded / ERW
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom
Wall Thickness / Schedule	SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm
End Connection	Butt Weld
Melting Point	1400-1450°C for (WP316Ti)
Outside Diameter (OD)	Seamless / Buttweld Fitting ( 1/2″～48″), ERW / Welded / Fabricated Buttweld Fitting (1/2″～48″)
Value Added Services	Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering
Other Standards	MSS SP-75, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010
Material Test Certificates (MTC)	As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103
Materials	AISI 316Ti
Two Halve / Two Joint Buttweld Fittings Size	6″ to 48″
Manufacturing Specification	ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2
A403 SS Seamless Fittings	Size: 15 NB to 300 NB \| Sch.& Swg: Sch.5 to Sch.XXs
A403 SS Welded Fittings	Size: 15 NB to 600 NB \| Sch.& Swg: Sch.5 to Sch.80s

Stainless Steel 316Ti Buttweld Fittings are crafted from a titanium-stabilized austenitic stainless steel alloy that includes chromium (16–18%), nickel (10–14%), molybdenum (2–3%), and titanium (0.5%). The titanium addition significantly boosts resistance to intergranular corrosion, particularly after welding or extended exposure to high temperatures. These fittings boast a minimum tensile strength of 515 MPa, a yield strength of 205 MPa, and an elongation of 35%. The alloy also showcases excellent creep strength, high-temperature performance, and weldability, making it perfect for demanding applications that involve heat and corrosive environments.

Stainless Steel 316TI Buttweld Fittings Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS 316Ti	0.08 max	2.0 max	0.75 max	0.045 max	0.030 max	16.00 – 18.00	2.00 – 3.00	10.00 – 14.00	68.395 min

Stainless Steel 316TI Buttweld Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1399 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

ASTM A403 Stainless Steel 316TI Buttweld Fittings Cross in Turkey, Stainless Steel 1.4571 Buttweld Pipe Fittings İzmir, SS 316TI Butt Weld Pipe Cap Istanbul, Stainless Steel 316TI Eccentric Reducer Ankara, Stainless Steel 316TI Equal Tee Bursa, 316TI Stainless Steel Reducer in Bodrum, Stainless Steel 316TI SR Elbow Exporter in Antalya,

Largest Stainless Steel 316TI Buttweld Fittings Supplier in Istanbul, Turkey

Ferdi Fittings is a leading supplier of Stainless Steel 316TI Buttweld Fittings in Istanbul, Turkey. We offer an extensive range of Stainless Steel 316TI Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Stainless Steel 316TI Buttweld Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 316Ti	1.4571	S31635	SUS 316Ti	320S31	08Ch17N13M2T	Z6CNDT17‐123	X6CrNiMoTi17-12-2

Why Choose Stainless Steel 316TI Buttweld Fittings from Ferdi Fittings?

Stainless Steel 316TI Buttweld Fittings from Ferdi Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS S31635 Stub End Uk, ANSI B16.9 Stainless Steel 316TI Pipe Fittings İzmir, Stainless Steel 316TI Pipe Bend Stockist in Istanbul, Stainless Steel 316TI Pipe Nipple Manufacturer & Exporter in Ankara, Stainless Steel 1.4571 Butt Weld Pipe Fittings in Bursa, Stainless Steel 316TI Pipe Two Joint Pipe Fittings Bodrum, 316TI Stainless Steel Pipe Welded Fittings Manufacturers in Antalya, Stainless Steel 316TI Pipe Butt weld Fittings In Turkey, ASTM A403 Stainless Steel 316TI Pipe Butt Weld Fittings Supplier in Istanbul, Turkey.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

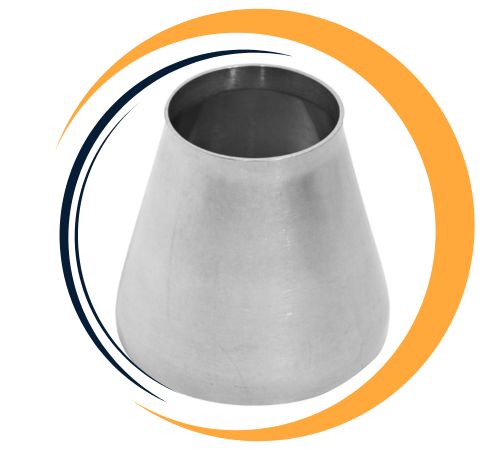

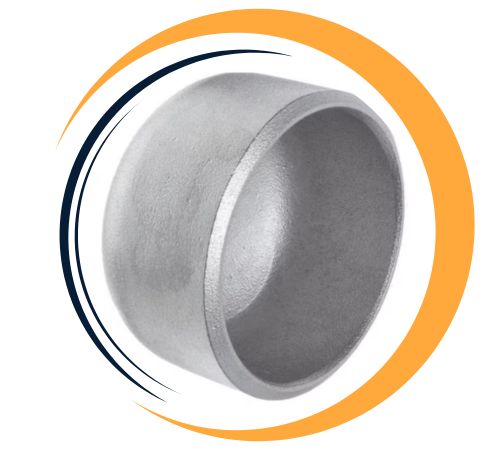

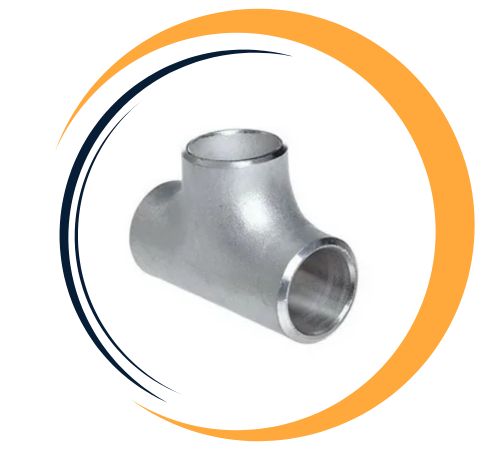

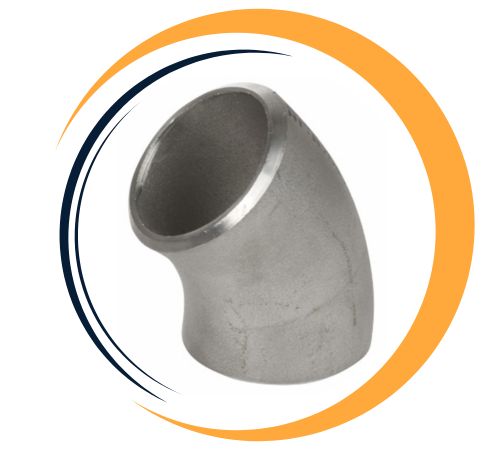

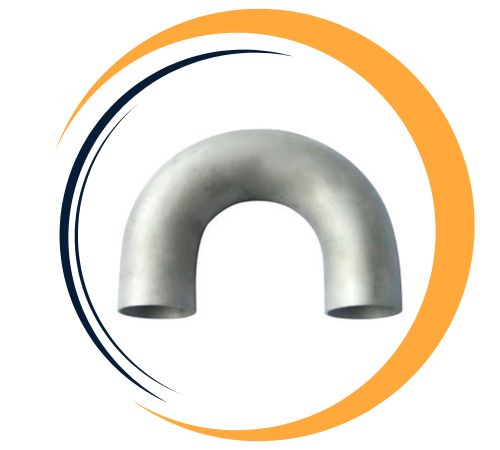

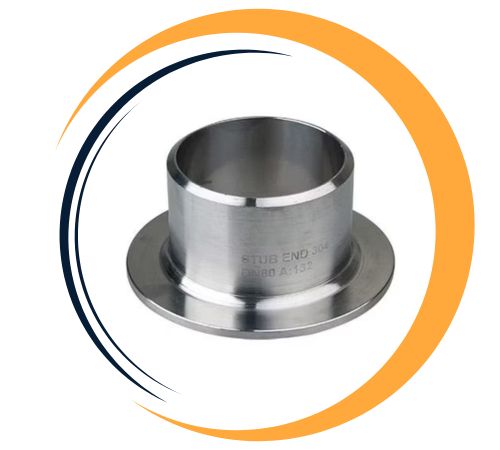

Types of Stainless Steel 316TI Buttweld Fittings

Stainless Steel 316TI Buttweld Fittings Dimensions Chart

Nominal Pipe Size (inches)	Outside Diameter		45°Elbows		90° Elbows		180° Returns
	Outside Diameter		Long Radius		Long Radius	Short Radius	Long Radius
	(mm)	(inches)	Center to Face (inches)	Radius (inches)	Center to Face (inches)	Center to Face (inches)	Center to Center (inches)	Back to face (inches)
1	33.4	1.315	7/8		1 1/2	1	3	2 3/16
1 1/4	42.2	1.660	1		1 7/8	1 1/4	3 3/4	2 3/4
1 1/2	48.3	1.900	1 1/8	3	2 1/4	1 1/2	4 1/2	3 1/4
1/2	21.3	0.840	5/8		1 1/2	–	2	1 7/8
3/4	26.7	1.050	7/16		1 1/8	–	2 1/4	1 11/16
2	60.3	2.375	1 3/8	4	3	2	6	4 3/16
2 1/2	73.0	2.875	1 3/4	5	3 3/4	2 1/2	7 1/2	5 3/16
3	88.9	3.500	2	6	4 1/2	3	9	6 1/4
3 1/2	101.6	4.000	2 1/4	7	5 1/4	3 1/2	10 1/2	7 1/4
4	114.3	4.500	2 1/2	8	6	4	12	8 1/4
5	141.3	5.563	3 1/8	10	7 1/2	5	15	10 5/16
6	168.3	6.625	3 3/4	12	9	6	18	12 5/16
8	219.1	8.625	5	12	12	8	24	16 5/16
10	273.1	10.750	6 1/4	15	15	10	30	20 3/8
12	323.9	12.750	7 1/2	18	18	12	36	24 3/8

Are Custom Sizes Available for Stainless Steel 316TI Buttweld Fittings?

Yes, custom sizes for Stainless Steel 316TI Buttweld Fittings are available at Ferdi Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@ferdifittings.com.

ASTM A403 Stainless Steel 316TI Butt Weld Cross in Turkey, Stainless Steel 28011 Buttweld Pipe Fittings İzmir, SS 316TI Butt Weld Pipe Cap Istanbul, Stainless Steel 316TI Eccentric Reducer Ankara, Stainless Steel 316TI Equal Tee Bursa, 316TI Stainless Steel Reducer in Bodrum, SS 316TI SR Elbow Exporter in Antalya,

Application Industry of Stainless Steel 316TI Buttweld Fittings

Stainless Steel 316Ti Buttweld Fittings find extensive use in industries that demand high strength, durability, and corrosion resistance in elevated temperature conditions. You’ll often see them in chemical and petrochemical processing plants, oil and gas refineries, power generation facilities, and marine applications. Their ability to resist pitting, crevice corrosion, and sensitization makes them particularly suitable for heat exchangers, pressure vessels, and other critical applications.
