Ferdi Fittings, located in Istanbul, Turkey, stands out as a top manufacturer and supplier of high-quality Monel 400 Pipe Fittings. Known for their precision engineering and durability, Ferdi Fittings serves industries that need strong, corrosion-resistant solutions. The Monel 400 pipe fittings they offer are made with a strict commitment to international standards, ensuring they can be relied upon in tough environments. With a focus on excellence, Ferdi Fittings provides a diverse range of fittings that cater to various industrial needs, delivering seamless integration, outstanding performance, and long-lasting durability. Their expertise and customer-centric approach have made them a trusted name for Monel 400 piping solutions around the globe.
| Specification Properties: | Monel 400 Pipe Fittings |

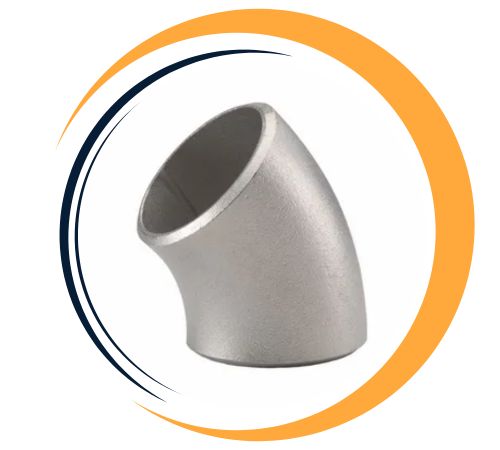

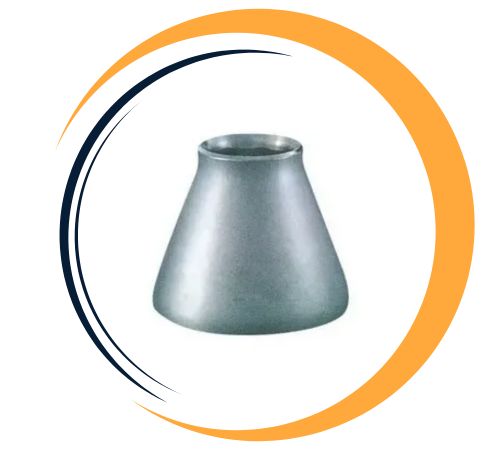

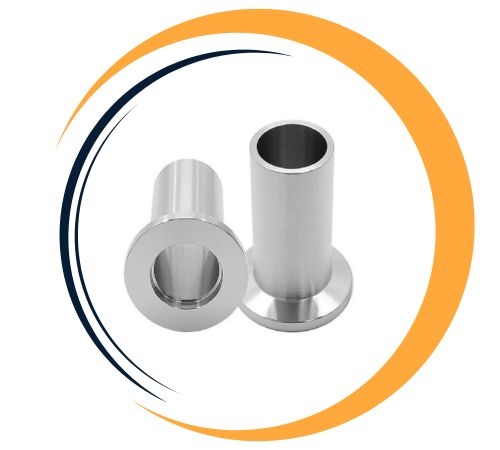

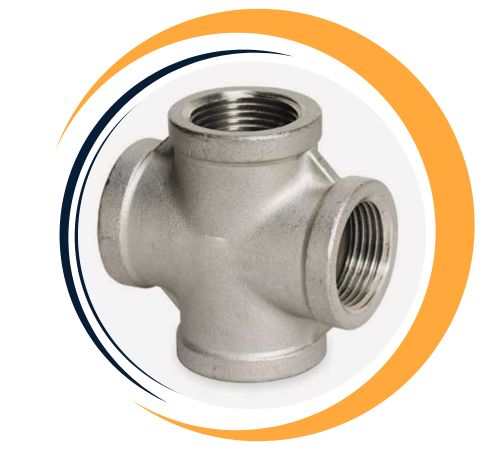

| Cmmonly Used Fittings Types | End Cap, Stub End, Bend, Tee, Reducer, Cross, Adapter, 4 Wye, Elbow |
| Flange Connection Type | Clamp End / End Bell/ Threaded/ Weld |
| Thickness Tolerance: | Schedule 20S To Schedule XXS |
| Length: | Normal Pipe Size (1⁄₂”) to Normal Pipe Size (48”) |
| Manufacturer Of Fittings Dimension Types: | ANSI B16.28, MSS-SP-43 Type A, JIS B2312, ANSI B16.9, MSS-SP-43 Type B, JIS B2313 |
| Standard Chart : | JIS, NPT, ISO, DIN, EN |
| Pressure Rating Chart : | 150# To 2500#. |
| Materials List: | Bronze, Copper, Iron (Ductile/Cast), Carbon Steel, Inconel, Monel, Hastalloy, Alloy Steel, Brass, Titanium, Chrome-molybdenum, Cupro-Nickel 90/10 & 70/30, Nickel, Nickel Alloys, Tantalum, Stainless Steel. |
Monel 400 Pipe Fittings are primarily made from a nickel-copper alloy, containing about 63% nickel and 28–34% copper, along with trace amounts of iron, manganese, and carbon. This unique composition gives them remarkable resistance to corrosion in a variety of settings, including seawater and acidic environments. On the mechanical side, Monel 400 boasts high tensile and yield strength, along with good ductility and toughness, even in freezing temperatures. These fittings maintain their structural integrity under high stress and pressure, making them perfect for critical piping applications where durability and corrosion resistance are a must.
| Grade | C | Mn | Si | Cu | S | Ti | Ni | Al | Fe |
| Monel 400 | 0.3 max | 2.0 max | 0.5 max | 28.0 – 34.0 | 0.02 max | – | 63.0 min | 0.50 max | 1.0 – 2.5 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 35000 , MPa – 240 | 40 % |
Ferdi Fittings is a leading supplier of Monel 400 pipe fittings in Istanbul, Turkey. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Monel 400 pipe fittings from Ferdi Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

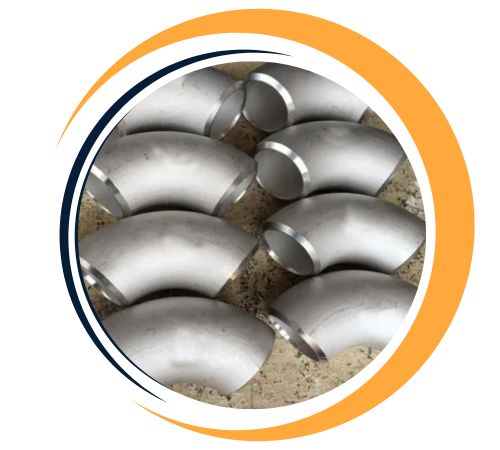

| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Monel 400 pipe fittings offer exceptional corrosion resistance, particularly in seawater and acidic environments, making them ideal for marine and chemical processing applications. These fittings exhibit high strength and durability, ensuring long-lasting performance even in harsh conditions. Monel 400 is resistant to stress corrosion, cracking, pitting, and crevice corrosion. It also has excellent weldability and machinability, allowing for ease of fabrication. Additionally, Monel 400 maintains its strength and structural integrity at high temperatures, making it a reliable choice for industries requiring corrosion resistance and high-performance capabilities.
| O.D. or I.D. Diameter | Equivalent Decimal | Nominal Diameter | Typical Threads In Inch |
| 5/16 | 0.313 | 1/16 | 27 |
| 13/32 | 0.405 | 1/8 | 27 |
| 35/64 | 0.540 | 1/4 | 18 |
| 43/64 | 0.675 | 3/8 | 18 |
| 27/32 | 0.840 | 1/2 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 |
| 2-3/8 | 2.375 | 2 | 11-1/2 |
| 2-7/8 | 2.875 | 2-1/2 | 8 |
| 3-1/2 | 3.500 | 3 | 8 |
| 4 | 4.000 | 3-1/2 | 8 |
| 4-1/2 | 4.500 | 4 | 8 |
Yes, custom sizes for Monel 400 pipe fittings are available at Ferdi Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@ferdifittings.com.
Monel 400 Pipe Fittings find extensive use in chemical processing, marine engineering, and the oil and gas industries, thanks to their exceptional corrosion resistance. They are particularly well-suited for seawater systems, heat exchangers, condensers, and desalination plants, where harsh conditions are the norm. Additionally, Monel 400 fittings are utilized in aerospace, power generation, and the pulp and paper industries to manage aggressive chemicals and high-pressure fluids. Their strength and reliability make them ideal for applications that require long-term service with minimal maintenance, ensuring safety and efficiency in crucial industrial operations.
