Ferdi Fittings, based in Istanbul, Turkey, has earned a solid reputation as a reliable manufacturer and supplier of high-performance pipe fittings. They specialize in corrosion-resistant alloys, particularly the impressive SMO 254 Forged Fittings. Built to withstand tough conditions, these fittings boast remarkable strength, excellent weldability, and outstanding resistance to pitting and crevice corrosion. Ferdi Fittings is dedicated to providing precision-engineered components that adhere to global quality standards like ASTM, ASME, and DIN. Their SMO 254 forged fittings are perfect for demanding sectors such as chemical processing, marine, oil & gas, and desalination, especially in high-chloride, high-pressure systems where reliability and longevity are a must.
| 254 Forged Fittings Specifications | ASTM A182/ ASME SA182 |
|---|---|
| 254 SMO Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| 6 Moly Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| SMO 254 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM A182 SMO 254 Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| SMO 254 Forged Fittings Thread | NPT, BSPT, BSPP |
| SMO 254 Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| SMO 254 Forged Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |

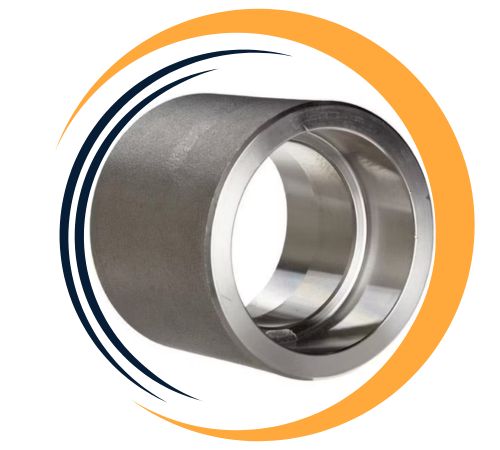

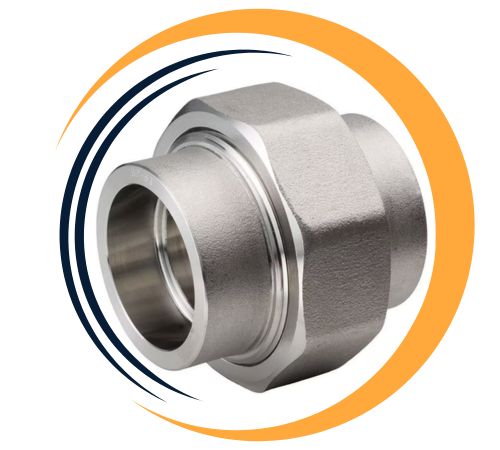

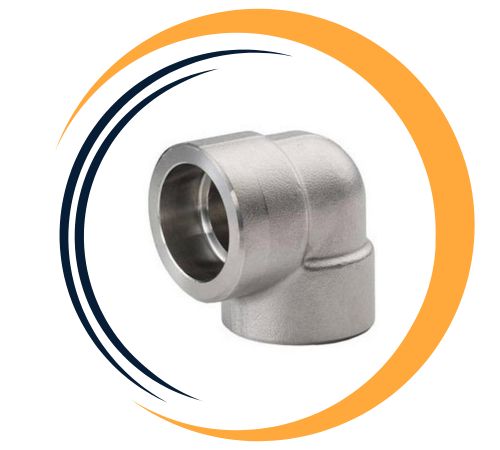

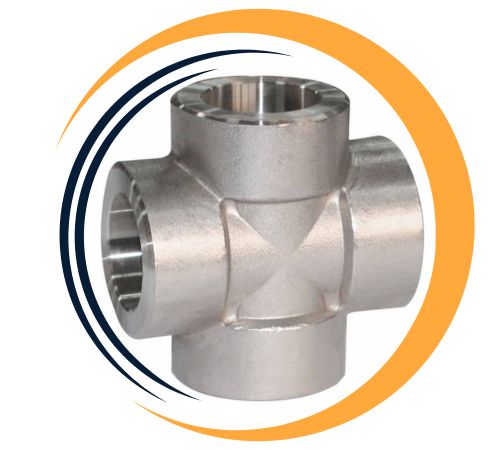

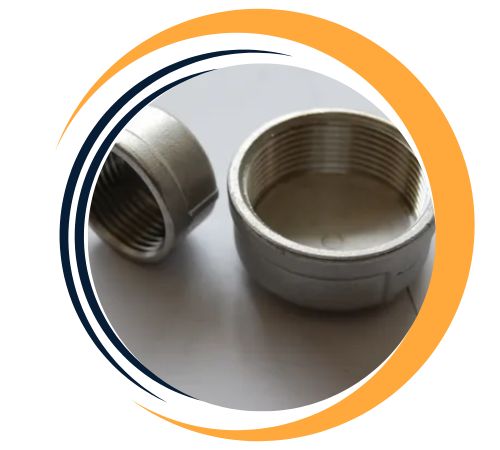

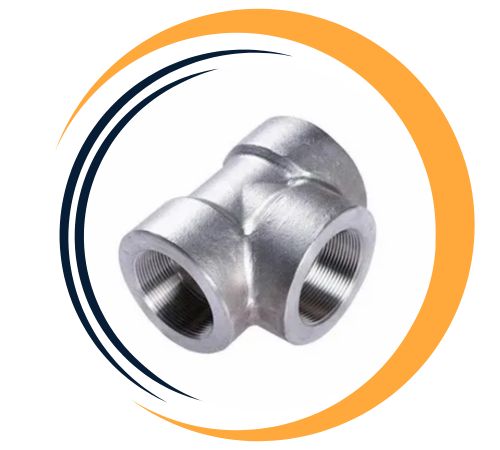

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Grade | Ni | Cr | Mo | Cu | N | C | Mn | Si | P | S |
| SMO 254 | 17.5 – 18.5 | 19.5 – 20.5 | 6 – 6.5 | 0.5 – 1 | 0.18 – 0.22 | 0.02 max | 1 max | 0.8 max | 0.03 max | 0.01 max |
| Density | Melting Point | Tensilee Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1320-1390 ℃ | 650 | 300 | 35 % |
When it comes to the composition and mechanical properties of SMO 254 Forged Fittings, Ferdi Fittings uses an austenitic stainless steel alloy that features a high alloy content, including around 20% chromium, 18% nickel, 6% molybdenum, and 0.2% nitrogen. This unique blend provides exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking, particularly in chloride-rich environments. On the mechanical side, SMO 254 showcases a tensile strength of up to 650 MPa and a yield strength of about 300 MPa, along with impressive ductility and toughness. These characteristics make it an excellent choice for aggressive, high-pressure systems where durability and corrosion resistance are crucial.
Ferdi Fittings is a leading supplier of SMO 254 Forged Fittings in Istanbul, Turkey. We offer an extensive range of SMO 254 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SMO 254 | 1.4547 | S31254 | SIS 2378 | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
| ASTM A182 / A182M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic SMO Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | SMO fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Choose SMO 254 Forged Fittings from Ferdi Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
SMO 254 Forged Fittings offer many advantages, including exceptional corrosion resistance, especially in high chloride environments, making them ideal for marine, chemical and petrochemical applications Their high molybdenum and chromium content pitting, cracking corrosion and stress corrosion cracks Provides excellent strength for . These fittings also exhibit good strength and durability, ensuring high tensile strength and yield strength, long-term performance in harsh conditions Furthermore, SMO 254 mesh fittings offer excellent weldability and formability, making them versatile for a wide range of industrial applications, providing reliability and cost – efficiency.
Yes, custom sizes for SMO 254 Forged Fittings are available at Ferdi Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@ferdifittings.com
SMO 254 Forged Fittings find their place in various applications where extreme corrosion resistance and mechanical strength are vital. Industries such as offshore oil & gas, chemical processing, desalination, pulp & paper, and marine environments rely on these fittings for their dependability in high-chloride and acidic conditions. They are particularly suited for high-pressure piping systems, heat exchangers, pressure vessels, and seawater cooling systems. Ferdi Fittings offers a comprehensive range of forged components, including elbows, tees, and couplings, ensuring that all your needs are met with quality and reliability.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
