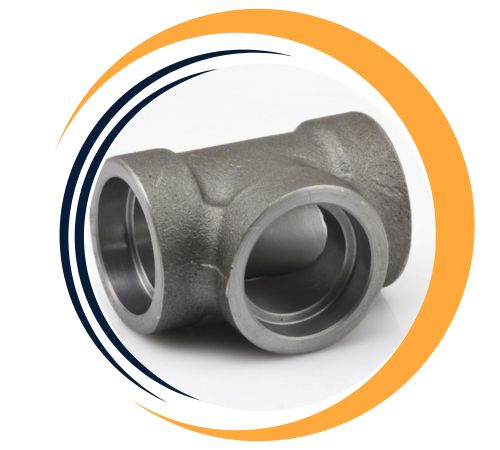

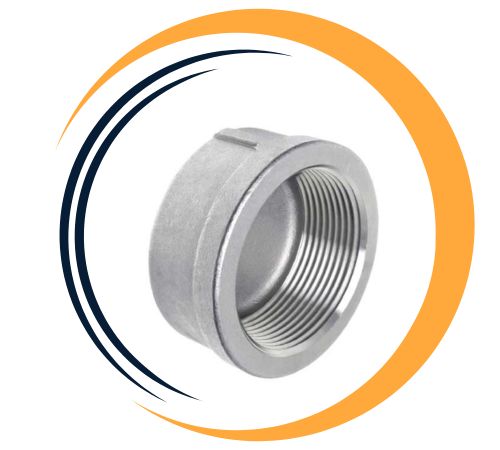

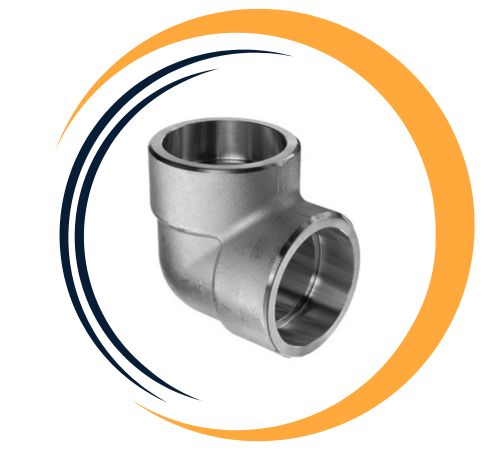

Stainless Steel 317/317L Forged Fittings are prized for their outstanding resistance to corrosion, impressive strength, and long-lasting durability, making them perfect for a variety of industrial uses. Crafted from austenitic stainless steel grades 317 and 317L, these fittings excel in resisting pitting, crevice corrosion, and general corrosion, especially in acidic and chloride-rich environments. Their forged design guarantees robust mechanical integrity and the ability to handle high pressure. Available in different forms like elbows, tees, reducers, and caps, Stainless Steel 317/317L Forged Fittings ensure dependable, leak-free connections across industries such as chemical processing, petrochemical, pharmaceuticals, marine, and food processing.
Specifications : ASTM A182 / ASME SA182
Dimensions : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
These fittings are primarily made of iron, with 18–20% chromium, 11–13% nickel, and 3–4% molybdenum. The 317L grade features a lower carbon content, which minimizes the risk of carbide precipitation during welding and boosts corrosion resistance in welded structures. They showcase excellent tensile and yield strength, good toughness, and high ductility. Their remarkable resistance to both oxidizing and reducing environments, along with great weldability and formability, makes them a top choice for critical piping systems that demand durability and long-term performance in harsh chemical settings.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Ferdi Fittings is a leading supplier of Stainless Steel 317/317L Forged Fittings in Istanbul, Turkey. We offer an extensive range of Stainless Steel 317/317L Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
Choose Stainless Steel 317/317L Forged Fittings from Ferdi Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Stainless steel 317/317L forged fittings provide excellent corrosion resistance, especially in high chloride environments, making them ideal for chemical, petrochemical, and marine applications These alloys have excellent strength and thermal stability even at higher levels, providing longer service life. The low carbon content of 317L reduces carbide precipitation, increases weldability and reduces the susceptibility to stress corrosion cracking. In addition, they are more resistant to oxidation and pitting, increasing the longevity of the systems. Their high resistance to sulfuric and hydrochloric acids makes them suitable for aggressive chemical applications.
Yes, custom sizes for Stainless Steel 317/317L Forged Fittings are available at Ferdi Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@ferdifittings.com
| Fitting Schedule/Class | Pipe Size – Pipe Fitting | Fitting Connection Type | Pipe Fitting Material | Max. Pressure |
|---|---|---|---|---|
| Class 150 | 1/2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1/2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1/2″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 1/2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 3/4″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 3/4″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 3/4″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 3/4″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 3/4″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 1″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 1″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 1″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/4″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/4″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/4″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 1-1/4″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/4″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/2″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 1-1/2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 2″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 2-1/2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 2-1/2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 2-1/2″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 2-1/2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 2-1/2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 3″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 3″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 3″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 3″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 4″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 4″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 4″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 4″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 4″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 6″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 6″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 6″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 6″ | Welded | Stainless Steel 317 | 150 psi |
| DN-NPT | MAJOR DIAMETER MM | TAPPING DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
The versatility of Stainless Steel 317/317L Forged Fittings is evident in their wide range of applications, thanks to their corrosion resistance and mechanical properties. They are commonly found in the chemical and petrochemical sectors for managing acids, alkalis, and other aggressive substances. In the pharmaceutical and food processing industries, they are essential for sanitary pipelines where hygiene and corrosion resistance are paramount. Marine applications benefit from their ability to withstand seawater corrosion, while power generation and desalination plants utilize them for pipelines, valves, and process equipment. These fittings guarantee reliable, long-lasting, and safe operation in industries that require high-performance materials.
