Ferdi Fittings, located in Istanbul, Turkey, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel 321/321H Forged Fittings. Renowned for their precision engineering and durability, these fittings are crafted using cutting-edge technology and rigorous quality standards, ensuring they perform exceptionally well in demanding industries. The Stainless Steel 321/321H, which is stabilized with titanium, boasts impressive resistance to intergranular corrosion and high-temperature strength, making these forged fittings dependable even in extreme conditions. Ferdi Fittings offers a diverse selection of forged fittings designed to meet various industrial requirements with efficiency, reliability, and a long service life.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings

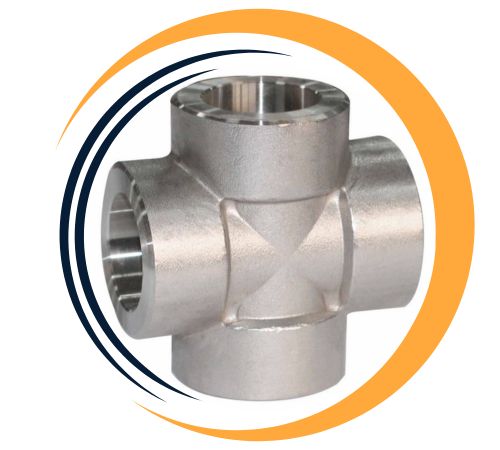

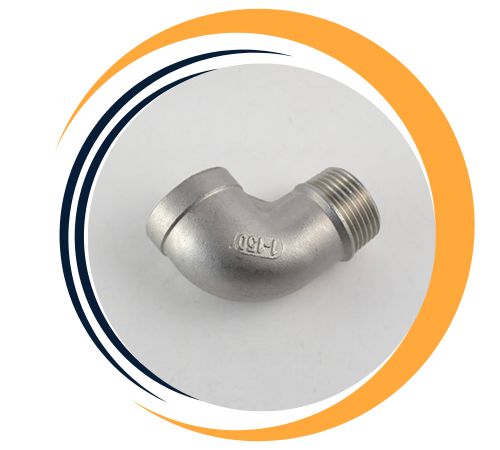

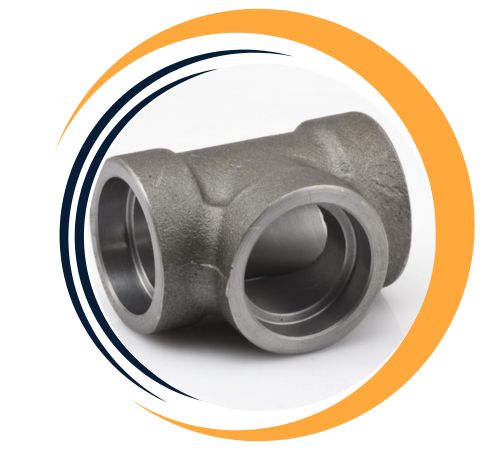

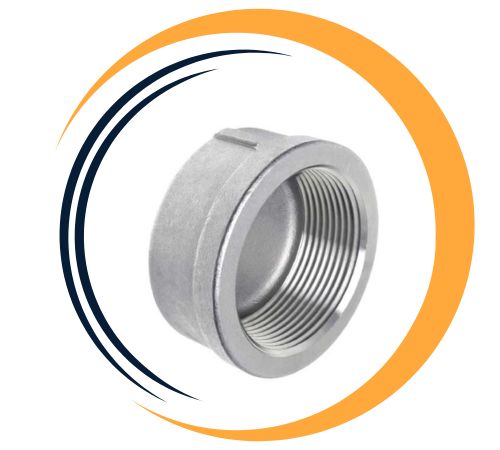

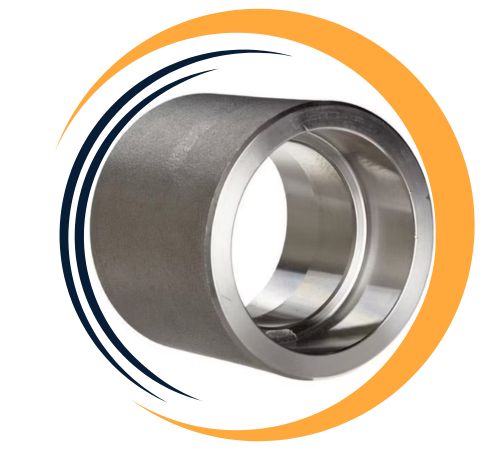

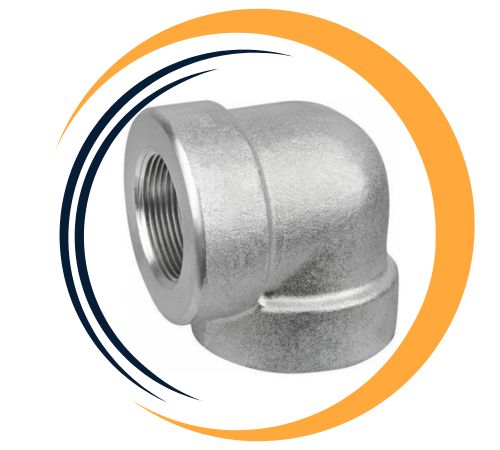

Forged Fittings Items : 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 321 / 321H UNS (S32100, S32109), DIN (1.4541, 1.4878)
The Stainless Steel 321/321H Forged Fittings are primarily made up of chromium, nickel, and titanium, which enhance their stability against carbide precipitation. The 321H variant, with its higher carbon content, provides improved strength at elevated temperatures. These fittings excel in corrosion resistance, creep strength, and outstanding oxidation resistance up to 870°C. Mechanically, they offer high tensile and yield strength, along with durability and toughness, even in harsh operating environments, ensuring they remain reliable and perform well in critical applications.
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Ferdi Fittings is a leading supplier of Stainless Steel 321/321H Forged Fittings in Istanbul, Turkey. We offer an extensive range of Stainless Steel 321/321H Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
| SS 321H | 1.4878 | S32109 | SUS 321H | X12CrNiTi18-9 |
Choose Stainless Steel 321/321H Forged Fittings from Ferdi Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Stainless steel 321/321H forged fittings offer many advantages, including resistance to high temperature oxidation and corrosion, making them ideal for use in high-temperature environments The addition of titanium stabilizes the material, especially prevents sensitivity and intergranular corrosion in welds. These fittings have excellent strength, high tensile and yield characteristics, and excellent formability, ensuring durability and long-term performance in critical applications Stainless steel 321H, with a high carbon content of 1,000. for higher strength at higher temperatures. Overall, they are highly reliable in the petroleum, aerospace, and power sectors.
Yes, custom sizes for Stainless Steel 321/321H Forged Fittings are available at Ferdi Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@ferdifittings.com
| Fitting Schedule/Class | Pipe Size – Pipe Fitting | Fitting Connection Type | Pipe Fitting Material | Max. Pressure |
|---|---|---|---|---|
| Class 150 | 1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1/2″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 1/2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 3/4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 3/4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 3/4″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 3/4″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 3/4″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 1″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 1″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 1″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/4″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 1-1/4″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 1-1/4″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 1-1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/2″ | Forged | Forged Stainless Steel 321H | 275 psi |
| Class 150 | 1-1/2″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 1-1/2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 2″ | Forged | Forged Stainless Steel 321H | 275 psi |
| Class 150 | 2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 2-1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 2-1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 2-1/2″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 2-1/2″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 2-1/2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 3″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 3″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 3″ | Forged | Forged Stainless Steel 321H | 275 psi |
| Class 150 | 3″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 4″ | Forged | Forged Stainless Steel 321H | 275 psi |
| Class 150 | 4″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 4″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 6″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 6″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 6″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 6″ | Welded | Stainless Steel 321 | 150 psi |
| DN-NPT | MAJOR DIAMETER MM | TAPPING DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
You’ll find Stainless Steel 321/321H Forged Fittings widely utilized in industries that require heat resistance and corrosion protection. They are commonly used in oil and gas, petrochemical, power generation, and chemical processing sectors. Their stability at high temperatures makes them perfect for boilers, heat exchangers, furnace components, and exhaust systems. Additionally, these fittings are well-suited for aerospace and marine applications, where reliability in fluctuating conditions is crucial. Their durability, resistance to oxidation, and ease of fabrication make them a go-to choice for tough industrial settings that demand robust and long-lasting fittings.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
