Ferdi Fittings, based in Istanbul, Turkey, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel 347H Pipe Fittings. They specialize in delivering high-performance piping solutions tailored for critical industrial needs. With years of expertise and cutting-edge manufacturing techniques, Ferdi Fittings is dedicated to offering products that are not only corrosion-resistant and heat-resistant but also dimensionally precise, all while adhering to international quality standards. The Stainless Steel 347H, a high-carbon variant of 347, is crafted specifically for high-temperature applications. Ferdi Fittings caters to essential sectors like power generation, chemical processing, oil and gas, and refineries, providing pipe fittings that guarantee reliability, safety, and long-lasting performance even in the toughest operating conditions.
| Specifications | ASTM A403 / ASME SA403 |
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | Seamless / Welded / Fabricated |
Stainless Steel 347H Pipe Fittings are crafted from a stabilized austenitic stainless steel alloy that includes chromium (17–20%), nickel (9–13%), and columbium (niobium) for stabilization, featuring a higher carbon content (0.04–0.10%) compared to standard 347. This unique composition boosts creep resistance and high-temperature strength. These fittings boast a minimum tensile strength of 515 MPa, yield strength of 205 MPa, and an elongation of 35%. The alloy effectively resists intergranular corrosion, maintains structural integrity at elevated temperatures, and offers excellent weldability, making it perfect for high-stress, high-temperature settings like heat exchangers, boilers, and pressure vessels.
| Grade | C | Ni | Mn | P | S | Cr | Si | Mo | N |
| 347H | 0.08 max | 9.00-13.00 | 2.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 1.0 max | – | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454°C (2650°F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |

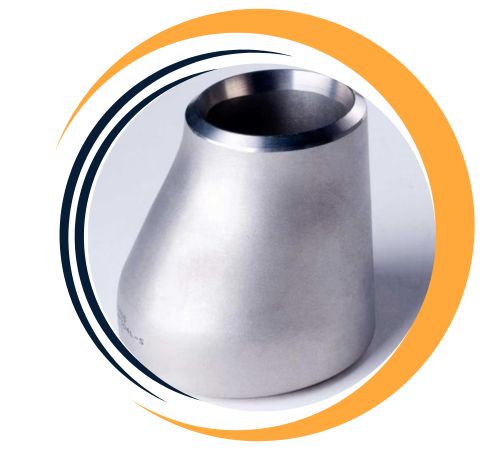

Ferdi Fittings one of the largest suppliers of Stainless Steel 347H Pipe Fittings in Istanbul, Turkey. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 347H is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 347H Pipe Fittings in the Turkey.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 347H Pipe Fittings from Ferdi Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| 347H | 1.4961 | S34709 | SUS 347H | – | – | – | X6CrNiNb18-12 |
Yes, custom sizes are available for Stainless Steel 347H Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@ferdifittings.com.

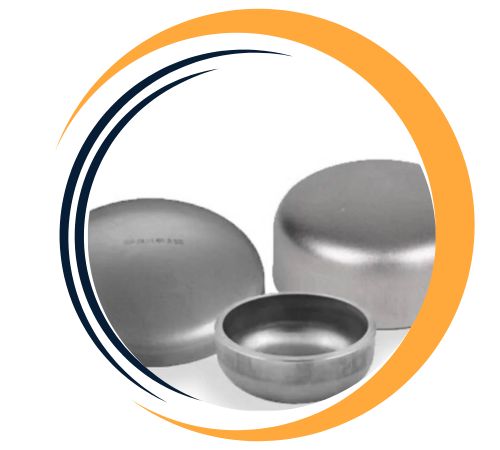

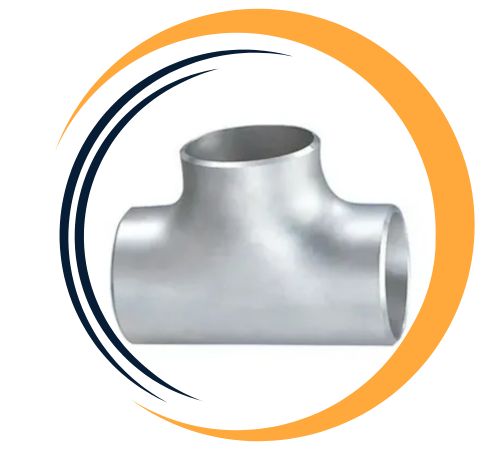

| Minimal Sizes | Outer Diam. | Caps | Straight Tee | Straight Crosses | Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | Length (in) | Center to End (in) | Center to End (in) | Lap Diameter (in) | Long Length (in) | Short Length (in) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |

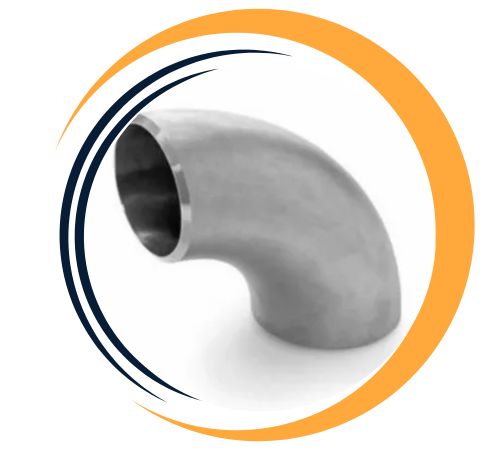

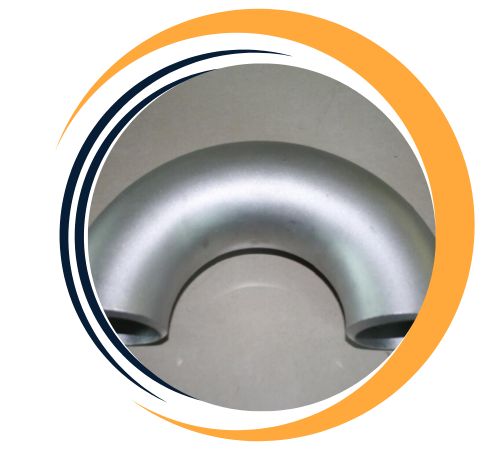

| Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
(inches) | Long Radius | Short Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Stainless Steel 347H Pipe Fittings are engineered for high-temperature and high-pressure scenarios, where superior creep resistance and structural stability are essential. They are commonly found in heat exchangers, boilers, superheaters, and pressure vessels, making them ideal for power generation plants, petrochemical facilities, and refineries. Their ability to resist intergranular corrosion ensures they perform reliably in demanding environments, providing peace of mind for critical applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
