Ferdi Fittings specializes in producing Stainless Steel 347 Pipe Fittings in Istanbul, Turkey. The company focuses on quality, performance, and consistency. These fittings are designed for high-temperature, corrosion-resistant service, maintaining structural integrity under thermal stress. Ferdi Fittings supports global clients in power, refining, chemical, and industrial sectors with 347 fittings that meet strict standards and deliver long-lasting reliability.
| Specifications | ASTM A403 / ASME SA403 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size Range | 15 NB UP TO 1200 NB ; 1/8″ NB TO 48″ NB |
| Schedule | SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS. |
| Type | Seamless & 100% X-Ray Welded, Fabricated |
Stainless Steel 347 is a niobium-stabilized austenitic alloy. It typically contains approximately 17-19% chromium and 9-13% nickel, with carbon up to 0.08%. Niobium is added to prevent chromium carbide formation during welding and high-temperature exposure. This stabilization enhances resistance to intergranular corrosion and allows for higher creep strength. The 347 alloy shows tensile strength around 515 MPa, yield of about 205 MPa, elongation of at least 40%, and good stress rupture properties at high temperatures.
| Grade | C | Ni | Mn | P | S | Cr | Si | Mo | N |
| 347 | 0.08 max | 9.00-13.00 | 2.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 1.0 max | – | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454°C (2650°F) | Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % |
Ferdi Fittings one of the largest suppliers of Stainless Steel 347 Pipe Fittings in Istanbul, Turkey. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 347 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 347 Pipe Fittings in the Turkey.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 347 Pipe Fittings from Ferdi Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | 08Ch18N12B | X6CrNiNb18-10 |
Stainless steel 347 pipe fittings offer several key benefits, making them ideal for high performance applications. Intergranular corrosion resistance, especially at elevated temperatures, is enhanced by the addition of columbium (niobium). These materials provide excellent oxidation and scaling resistance, and durability in harsh environments. They maintain strength and structural integrity at high temperatures, making them suitable for applications such as chemical processing, power generation and aerospace. In addition, stainless steel 347 fittings provide excellent weldability and formability, ensuring easy installation and maintenance under challenging industrial conditions.
Yes, custom sizes are available for Stainless Steel 347 Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@ferdifittings.com.

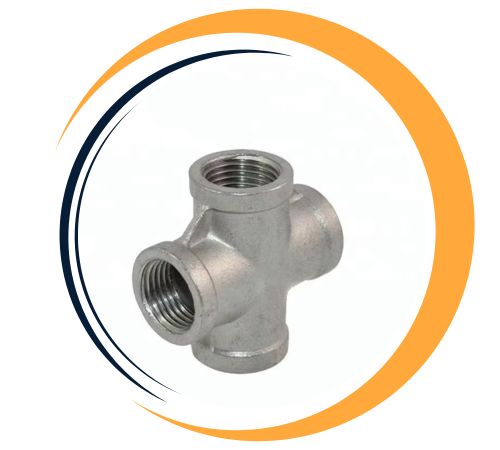

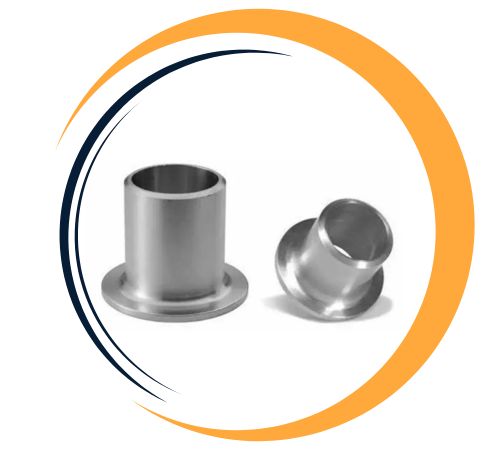

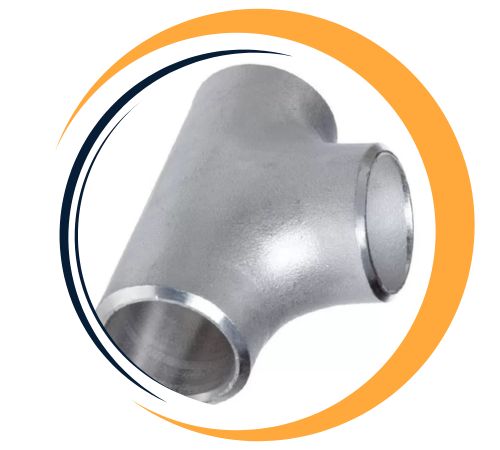

| Minimal Sizes | Outer Diam. | Caps | Straight Tee | Straight Crosses | Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | Length (in) | Center to End (in) | Center to End (in) | Lap Diameter (in) | Long Length (in) | Short Length (in) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |

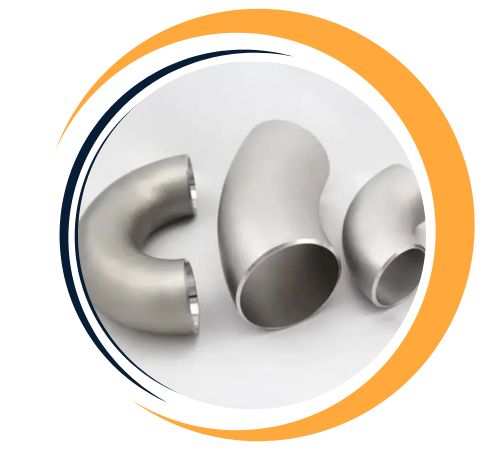

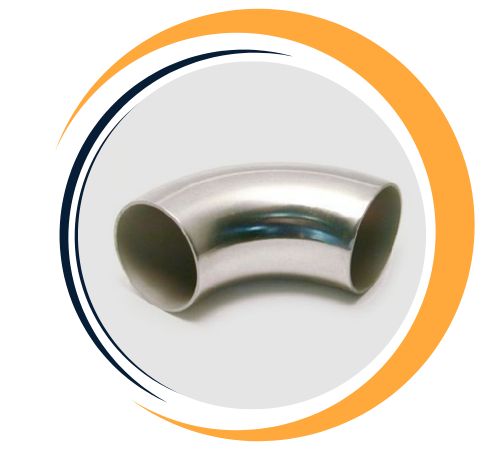

| Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
(inches) | Long Radius | Short Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Stainless Steel 347 pipe fittings are commonly used in high-temperature pipelines, boilers, heat exchangers, exhaust systems, and various chemical processing equipment. Their stabilized nature makes them particularly valuable for welded systems that experience repeated thermal cycling, which is common in power plants, refineries, and petrochemical plants. They resist sensitization and maintain corrosion performance in aggressive environments while withstanding creep and fatigue over long periods.
